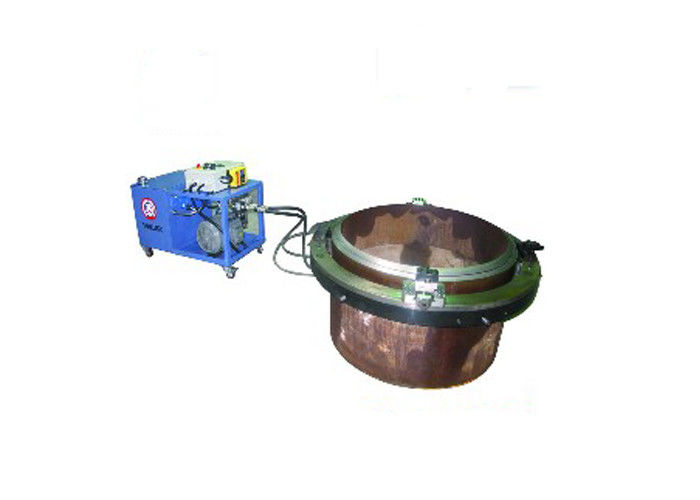

Split Frame Hydraulic Pipe Cutting And Beveling Machine , Clamshell Pipe Cutter

Split Frame Hydraulic Pipe Cutting And Beveling Machine , Clamshell Pipe Cutter
Split Frame Hydraulic Pipe Cutting And Beveling Machine , Clamshell Pipe Cutter

Large Image :  Split Frame Hydraulic Pipe Cutting And Beveling Machine , Clamshell Pipe Cutter

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCH-914
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 10 R/min Warranty: 1 Year
Working Range: 762-914mm;30''-36'' Cutting Material: Carbon,stainless,alloy
Driving Type: Hydraulic
High Light:

cold cutting pipe equipment

,

industrial pipe cutting tools

Split Frame Hydraulic Pipe Cutting And Beveling Machine , Clamshell Pipe Cutter





Production Description:


Powerful drive, high efficiency


Low noise, stable performance


Ideal for heavy wall thickness & large size pipe


Electric requirement: 230V 1PH 50/60Hz


380V 3PH 50/60Hz


Power: 2.0KW or 3.0KW


Double motor for big model or heavy duty



Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min



16 models, working range for pipe OD 1"-48".


Non-standard model can be customized.


Out-mounted style, clamping by multipoint jaws.


Split frame technology, easy to install on the pipeline.


Cold cutting and beveling, don't influence the pipe's material.


Auto feed, cutting and beveling at the one time, cost effective.


Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.


Stationary ring is steel; rotation ring is aluminum, and steel optional.


Electric, pneumatic, numerical control and hydraulic drive options are available.


Several different drive options are available to best position, the motor for a specific machining application.


It can be equipped a wide range of accessories to increase performance and expand



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point,



counterbore and flange facing operations, as well as weld end preparation on open ended pipe.





Split Frame Hydraulic Pipe Cutting And Beveling Machine , Clamshell Pipe Cutter 0



Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



9. Machining heavy-wall pipe from 3/4" up to 56.



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCH-914

Φ762-914(30”-36”)

≤30mm

10 r/min
