Production Description:

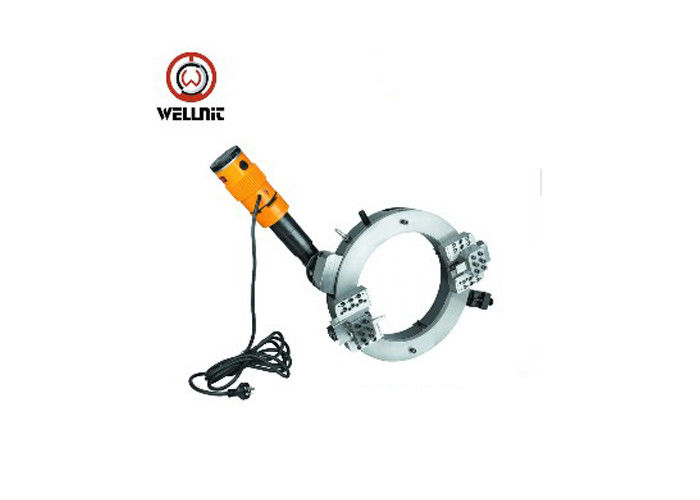

The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.

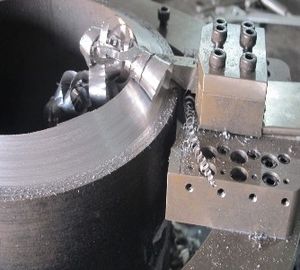

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56



inches O.D.(DN20-1400), on most wall thicknesses and material.



It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum,



chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline



installation engineering, rush-repair work, etc.



Machine	Pipe cutting and beveling machine	1PC
Drive Mode	Pneumatic Motor	1PC
Components	Aluminum alloy/wooden packing case	1PC
	Cutter holder	1PC
	Cutting blade	1PC
Tools	Rubber hammer, Spray bottle, Square, Wrench set	1SET
Documents	Operating manual, SFM	1PC
	Certificate of conformity, SFM	1PC
	U-disk	1PC



Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed	Air pressure	Air Consumption
OCP-89	Φ25-89	3/4''-3''	≤35	50r/min	0.6MPa	1500 L/min
OCP-159	Φ50-159	2''-5''	≤35	21r/min	0.6MPa	1500 L/min
OCP-168	Φ50-168	2''-6''	≤35	21r/min	0.6MPa	1500 L/min
OCP-230	Φ80-230	3''-8''	≤35	20r/min	0.6MPa	1500 L/min
OCP-275	Φ125-275	5''-10''	≤35	20r/min	0.6MPa	1500 L/min
OCP-305	Φ150-305	6''-10''	≤35	18r/min	0.6MPa	1500 L/min
OCP-325	Φ168-325	6''-12''	≤35	16r/min	0.6MPa	1500 L/min
OCP-377	Φ219-377	8''-14''	≤35	13r/min	0.6MPa	1500 L/min
OCP-426	Φ273-426	10''-16''	≤35	12r/min	0.7MPa	1800 L/min
OCP-457	Φ300-457	12''-18''	≤35	12r/min	0.7MPa	1800 L/min
OCP-508	Φ355-508	14''-20''	≤35	12r/min	0.7MPa	1800 L/min
OCP-560	Φ400-506	16''-22''	≤35	12r/min	0.7MPa	1800 L/min
OCP-610	Φ457-610	18''-24''	≤35	11r/min	0.7MPa	1800 L/min
OCP-630	Φ480-630	20''-24''	≤35	11r/min	0.7MPa	1800 L/min
OCP-660	Φ508-660	20''-26''	≤35	11r/min	0.7MPa	1800 L/min
OCP-715	Φ560-715	22''-28''	≤35	11r/min	0.7MPa	1800 L/min
OCP-762	Φ600-762	24''-30''	≤35	11r/min	0.8MPa	2000 L/min
OCP-830	Φ660-813	26''-32''	≤35	10r/min	0.8MPa	2000 L/min
OCP-914	Φ762-914	30''-36''	≤35	10r/min	0.8MPa	2000 L/min
OCP-1066	Φ914-1066	36''-42''	≤35	9r/min	0.8MPa	2000 L/min
OCP-1230	Φ1066-1230	42''-48''	≤35	8r/min	0.8MPa	2000 L/min



Q: How can you guarantee the Good Quality we received?



A :Firstly, We have QC department for Quality control from Raw material till finished products.



Secondly, We will do Inpsection during production and after Production.



Thirdly, All our products will be tested before packing and sending out.



We will send Inspection or testing video if customer not coming for checking personly.



Q: What about warrenty?



All our Products having 1 year warrenty and Life-Long Maintenance.



We will provide you with free technical support.



Q: Do you provide any help regarding Products Operation?



A: All machines within products introduction, Manuals in English which is having all the operation



suggestions and Maintenance proposals during using. Meanwhile, We could also support you with



other way, Like provide you Video, Show and teach you while you are in our factory or Our engineers



in your factory.



Q: Can I get Spare Parts?



A: We will enclose some quick wear parts with your order , As well some needed tools for this machine



which is free will be send together wtih your Order. We have all spare parts drawing within the Manual.



You could just tell us your spare parts No. In future. We could support you all the way.



Q: How Can I get more details about this machine or silimars?



A: Pls write down your questions and requirements in to below inquiry box.



We will check and reply you by Email or Phone in 8 Hours.



Before you place order to us, please let us know the following information:



1. Choose the right Model.



2. Confirm your electric power supply ( Voltage, frequency and phase).



3. Confirm the beveling angel required.



4. Confirm the welding joint required (U, V, Double V or Compound preparation).



5. Advise your Plate material ( Carbon steel, stainless steel or others).



6. Other special demands about machine.



7. The spare parts needed.
