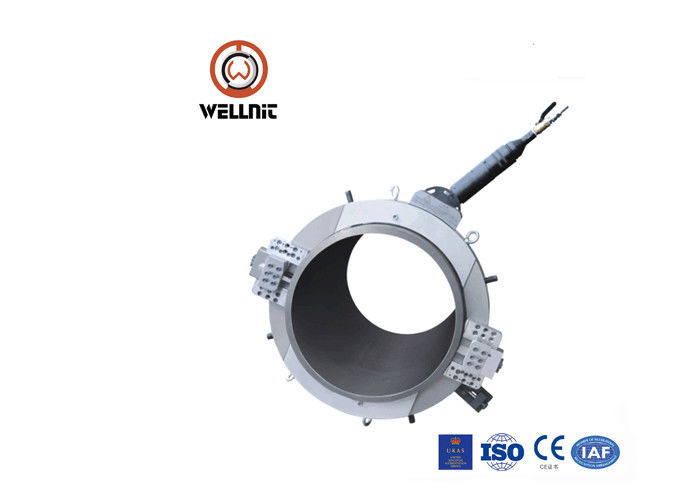

Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted

Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted
Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted

Large Image :  Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCP-457
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 10 R/min Warranty: 1 Year
Working Range: 300-457mm(12''-18'') Cutting Material: Carbon,stainless,alloy
Driving Type: Pneumatic
High Light:

pneumatic pipe cutting and beveling machine

,

tube cutting and beveling machine

Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted





Production Description:



Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min



Model Working Range (ID-OD) Wall Thickness Rotation Speed
OCH-89 Φ25-89 3/4''-3'' ≤35 100r/min
OCH-159 Φ50-159 2''-5'' ≤70 96r/min
OCH-168 Φ50-168 2''-6'' ≤70 90r/min
OCH-230 Φ80-230 3''-8'' ≤70 85r/min
OCH-275 Φ125-275 5''-10'' ≤70 80r/min
OCH-305 Φ150-305 6''-10'' ≤70 73r/min
OCH-325 Φ168-325 6''-12'' ≤70 70r/min
OCH-377 Φ219-377 8''-14'' ≤70 62r/min
OCH-426 Φ273-426 10''-16'' ≤70 58r/min
OCH-457 Φ300-457 12''-18'' ≤70 55r/min
OCH-508 Φ355-508 14''-20'' ≤70 52r/min
OCH-560 Φ400-506 16''-22'' ≤70 52r/min
OCH-610 Φ457-610 18''-24'' ≤70 50r/min
OCH-630 Φ480-630 20''-24'' ≤70 50r/min
OCH-660 Φ508-660 20''-26'' ≤70 50r/min
OCH-715 Φ560-715 22''-28'' ≤70 48r/min
OCH-762 Φ600-762 24''-30'' ≤70 48r/min
OCH-830 Φ660-813 26''-32'' ≤70 45r/min
OCH-914 Φ762-914 30''-36'' ≤70 41r/min
OCH-1066 Φ914-1066 36''-42'' ≤70 32r/min
OCH-1230 Φ1066-1230 42''-48'' ≤70 30r/min

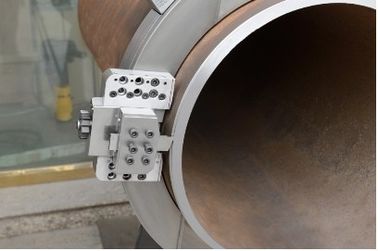

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame



design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings



for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single



point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, on



most wall thicknesses and material.









Pneumatic / Air Driven Pneumatic Cold Cutting Machine 12" - 18" Outer Mounted 0





Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.





Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCP-457

Φ300-457(12”-18”)

≤30mm

12 r/min
