Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Rated Power: | 1.5-2KW |
|---|---|---|---|
| Speed: | 11r/min | Warranty: | 1 Year |
| Working Range: | 480-630mm;20''-24'' | Cutting Material: | Carbon,stainless,alloy |
| High Light: | pipe cutter and beveler,pipe bevel cutter |
||

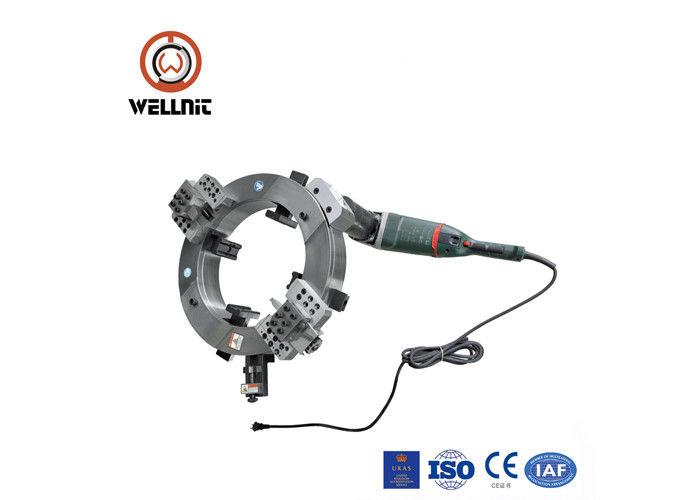

Auto Feed Stainless Steel Clamshell Pipe Cutting Machine Easy Mounted On Pipeline
WELLNIT Machine manufacturing Co., Ltd is specialized in the research, develop and manufacturing of
welding equipments and welding technology supports. It is a high tech enterprise engaged in scientific
research, develop, product manufacturing and trade .In the past years, we have imported advanced
equipment and technology such as Japanese Zimarac digital controlled tooling machine multiple processing
center, digital controlled tooth moving machine and tooth rolling machine. We have continuously updated
our products and technology and our company have passed ISO9001 quality certification. And we are
member of grade one supplier network for China Petroleum & Natural Gas Group Company.
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line
cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end
preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall
thicknesses and material.
1. Suitable for large quantities of pipe beveling process.
2. Can match pipe positioning system to achieve pipeline beveling process.
3. Can process stainless steel, carbon steel, cast steel, alloyed steel etc.
According to ISO9001 International Quality System, our company has established one set of complete and
efficient quality insurance system.
Wellnit does strict test to every product, and make them endure customers picking.
Packing with wellnit Brand Wooden Case.
Shanghai port
Ningbo port
EXW
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Wellnit company has supplied superior quality equipments and technical services to China nucleus,
aerospace, petroleum, chemical, power supply construction and boiler industry. And our exported products
are widely used in the large scale piping projects in Kuwait, Sudan, Pakistan and etc. and are well accepted
and supported by our foreign clients.
We take credit and sincerity as the base of our development and we will utilize our advanced technology to
service all our clients.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCM-630 |
Φ480-630(20”-24”) |
≤30mm |
11r/min |
