Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

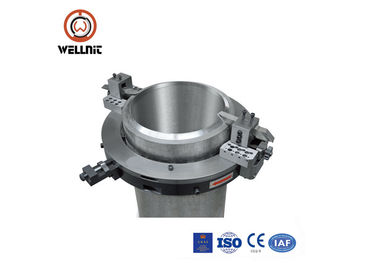

Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance

Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance
Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance

Large Image :  Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE
Model Number: OCE-715
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 11r/min Warranty: 1 Year
Working Range: 560-715 Mm;22''-28'' Cutting Material: Carbon,stainless,alloy
High Light:

pipe cutter and beveler

,

clamshell pipe cutting machine

Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance









Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56



inches O.D.(DN20-1400), on most wall thicknesses and material.



Q: Are you trading company or manufacturer ?



A: We are factory.



Q: How long is your delivery time?



A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.



Q: What is your terms of payment ?



1. T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;


2. If all the cost is less than USD $ 10000, T/T 100% required in advance.



This Pipe Cold Cutting and Beveling Machine, with chain guide, adopts high-performance hydraulic pump



to drive, adjustable speed, wide pipe range processing, long life performance, continuous operation and



work. Rigidity is good, the precision is high;


It is suitable for cutting and beveling pipes with t hick wall. In addition, it collocates remote control, simple



and convenience to operate.


This machine can operate at random, and can feed automatic, pipe cutting and beveling is safe and



reliable.



Cold Cutting and Beveling



Fast, Precision, On-site Beveling



Minimal Axial and Radial Clearance



Lightweight and Compact Design



Easy Set-up & Robust Operation



Before you place order to us, please let us know the following information:



1. Choose the right Model



2. Confirm your electric power supply ( Voltage, frequency and phase).



3. Confirm the beveling angel required



4. Confirm the welding joint required (U, V, Double V or Compound preparation)



5. Advise your pipe material ( Carbon steel, stainless steel or others)



6. Other special demands about machine



7. The spare parts needed.



8. Just a few seconds to finish the cut with one single rotation around the pipe.



9. Compact design, small space.



10. Used for Carbon Steel, Stainless Steel, Alloy Steel , Non-ferrous, Engineering plastic and Cast steel.



11. Automatic feed, no manual operation, smooth and efficient.



12. Will not influence the pipe material





Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



9. Electric or Pneumatic or Hydraulic driven.



10. Machining heavy-wall pipe from 3/4” up to 56.



HYDRAULIC DRIVEN

Wellnit standard hydraulic power unit.



Rated pressure: 13Mpa.



Rated flow: 28L/min.



Hydraulic motor rotation: 140-280rpm.



Max output torque: 380N.M



Timing range: 0-20m/min.



Electric power: 380V,50Hz, 3phase, 7.5KW



Oil capacity: 120L



Hydraulic oil: Winter 32#, summer 46#



Optional:



Anti-explosion hydraulic power unit



Duplex pump hydraulic power station



Diesel power unit

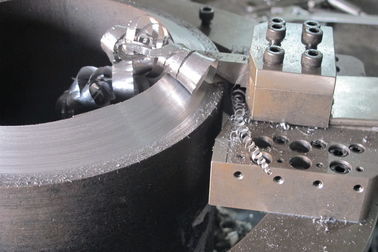

Portable Metal Clamshell Pipe Cutter Pipe Cold Cutting Machine Low Clearance 0



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCE-715

Φ560-715(22”-28”)

≤30mm

11r/min
