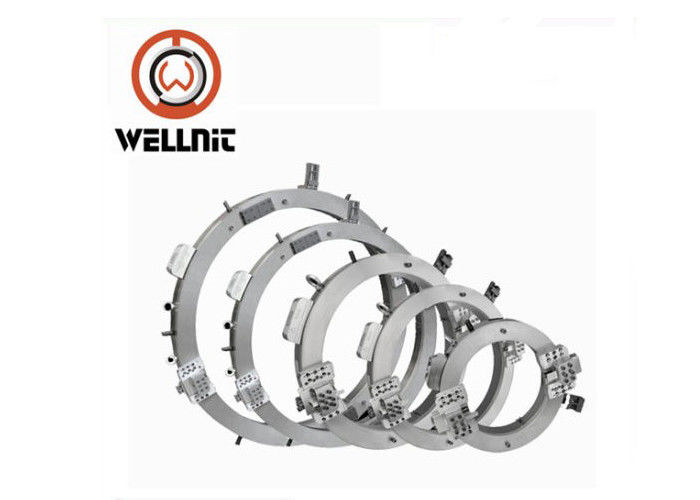

Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial

Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial
Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial

Large Image :  Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE
Model Number: OCE-610
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 11r/min Warranty: 1 Year
Working Range: 457-610mm;18''-24'' Cutting Material: Carbon,stainless,alloy
High Light:

pipe cutter and beveler

,

pipe bevel cutter

Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial







Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56



inches O.D.(DN20-1400), on most wall thicknesses and material.



HYDRAULIC DRIVEN

Wellnit standard hydraulic power unit.



Rated pressure: 13Mpa.



Rated flow: 28L/min.



Hydraulic motor rotation: 140-280rpm.



Max output torque: 380N.M



Timing range: 0-20m/min.



Electric power: 380V,50Hz, 3phase, 7.5KW



Oil capacity: 120L



Hydraulic oil: Winter 32#, summer 46#



Optional:



Anti-explosion hydraulic power unit



Duplex pump hydraulic power station



Diesel power unit



1) Enhanced edition for C series, more compact structure, designed to bevel the pipe in the narrow space.



2) Pipe out-mounted, self centering, secured clamping, easy to operate.



3) Aluminum body, light weight, suitable for working aloft.



4) Bevel the pipe in the narrow space and small size pipe.



5) Equipped with Metabo motor, strong power, longer service life, low noise. Available for the rifled tube by



the special design tool bit.



Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



ELECTRIC DRIVEN: ISE



Wellnit carbon brush motor, high speed rotation, low-energy consumption electric motor 110V or 220V



optional, electric power: 1.43KW 50-60Hz



PNEUMATIC DRIVEN: ISP



Pneumatic motor, no-spark in the process of working, safe and reliable operation. Air compressor is



necessary, can be suitable for inflammable and dangerous working place. Air working pressure:



0.8-1.0Mpa. Air cunsuming flux: 1500-3500L/min.



NC DRIVEN: SKD



Numercial controller: High power servo motor, PLC control system, adjustable speed. Also can be



controlled within 50m with wireless, avoid dangerous process 220V single phase or 380V phase, 50-60Hz,



2.0KW. Timing range: 0-20m/min. suitable for thick wall pipe, SS pipe, flange heavy duty cutting, etc.



TOOLS



Stanard tools attached with per set of machine(High speed steel, wall thickness ≤25mm):



0 deg*2pcs



30 deg*1pc



37deg*1pc



Other bevel angles or requirement, please declare before order.



Cold Electric Pipe Cutting Beveling Machine Split Frame Clamshell Radial 0



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCE-610

Φ457-610(18”-24”)

≤30mm

11r/min
