Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven

Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven
Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven

Large Image :  Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-252-2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Driven: Penumatic
Thickness: Less Than 75 (Standard) Speed Rotation: 16r/min
Working WAY: No Spark,Cold Working Fix Way: Inside Mounted
Working Range: 80-273mm(Inside Diameter)
High Light:

tube bevelling machine

,

pneumatic beveling tools

Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven

Main performance of the product


The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe.
A draw nut is tightened,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore. As the tool bit is fed into the material from the end,a bevel is produced which conforms to the angle predetermined by the angle ground into the bit.
Bits are available for practically any material or beveling angle required,
and bits can be custom made for any form tooling operation.

Features:

  • On-site cold Beveling improves safety
  • Easy set-up & Operation
  • Self-Centering
  • Can be positioned in any direction
  • Feed ratchet spanner makes tool feed / back easily
  • Light weight and compact design

Technical Parameter

ModelWorking Range(ID OD)Wall Thickness (mm)Rotation Speed(r/min)
ISE-30Φ16-28Φ19-38≤1560
ISE-80Φ28-76Φ32-89≤1555
ISE-120Φ40-110Φ48-120≤1538
ISE-159Φ65-159Φ72-168≤2035
ISE-252-1Φ80-240Φ90-273≤2016
ISE-252-2Φ80-240≤7516
ISE-352-1Φ150-330Φ160-356≤2014
ISE-352-2Φ150-330≤7514
ISE-426-1Φ250-410Φ260-430≤2012
ISE-426-2Φ250-410≤7512
ISE-630-1Φ300-600Φ320-630≤2010
ISE-630-2Φ300-600≤7510
ISE-850-1Φ590-790Φ610-850≤209
ISE-850-2Φ590-790≤759



ISE-252-2 Beveling Machine
Voltage220-240V
Frequency50-60Hz
Power1600W
Wall Thickness≦75
Working Range80-273mm
Rotation Speed16r/min
Net Weight58kg




Non-standard machines are available according to customers’requirement.

This machine isn't standard product. It is designed according to requirement of customer. It has advantages of small size, good appearance, easy operation, high precision and good performance etc.

Technical characteristics


 This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:


  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

  •

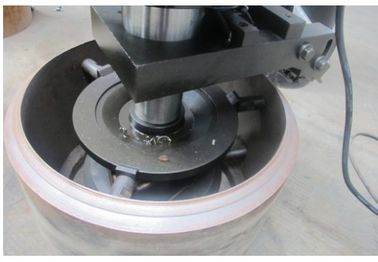

Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven 0

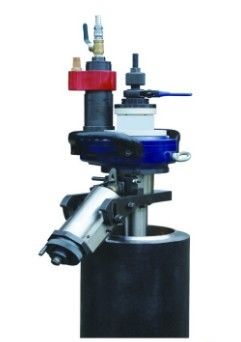

Inside Mounted Pneumatic Pipe Beveling Machine Thick Pipe Electric Driven 1
