2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

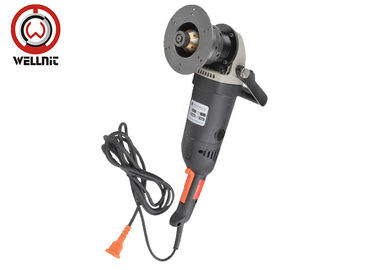

2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight

2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight
2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight 2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight

Large Image :  2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight

Product Details:
Place of Origin: china
Brand Name: wellnit
Certification: ISO9001
Model Number: PB-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: piywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Voltage: 220-240V Power: 2450W
Speed Rotation: 2500-7500r/min Bevel Angle: 20-60°(standard30°)
Bevel Width: 1-15mm Weight: 8.5KG
Tool Bit Qty: 4/5
High Light:

plate chamfering machine

,

plate edge beveling machine

2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight





Portable multi-function groove machine for the plate groove, chamfer design, is a kind of hand push type



machining tools, the unique design of the cutting tools, can not only processing flat mouth straight slope,



but also according to different shape, plate edge processing groove, yi ke board processing on round



hole edge chamfer, native light weight small size, convenient to carry, simple manipulation.









PB-15



Voltage



220-240V



power



2450W



Rotation



2500-7500 r/min



Beveling angle



20°-60°(standard 30°)



Beveling Width



1-15mm(Q235)



Security



Soft start



Tool Bit Qty



4/5



Weight



8.5Kg

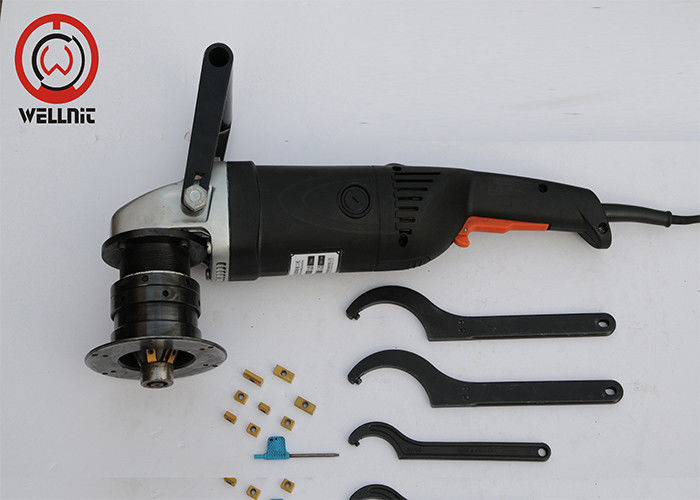

Cutting head



The groove pause in different segment, can complete different groove Angle, commonly used is 22.5 °, 30



° and 37.5 °, 45 ° and 60 °. Each blade is equipped with 5 carbide blades and each blade has four



blades. It can be switched. That is, a set of blades, which can be used four times, greatly saving the



consumption of the blades and reducing the cost.





2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight 02450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight 1



Main performance of the product

PB-15 multifunctional groove machine is suitable for processing before welding groove (can be

processing into K,V,X,Ytype groove),can be carried out on the plate groove processing and metal

materials burring ,etc.lts wersatility and flexibility and can be a lot of improve the efficiency of work and

make it become the attrcetive device ,the machine structure is compact ,to where the environment is

complex and difficult to machining operations.


2450W Flexible Portable Plate Beveling Machine Chamfer Design 8.5 Kg Weight 2



advantages


Operating handle and switch, safe operation speed adjustable, suitable for processing different materials


The steel plate groove height can be adjusted to connect with the milling cutter handle to reduce vibration



and extend the tool life.


The tool is designed to be light and handy to handle the processing of any Angle groove (10-80 degree



groove).



The cutting force of the groove machine is large and the speed is fast. The maximum cutting groove width



can be up to 15mm and the speed can be up to 0.5m~10m/min.


Pb-15 is assembled with a continuous groove length adjusting part, temperature rise protection and



electronic speed control, so that bm-15 can process various materials, such as steel, aluminum and



stainless steel.
