Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Rated Power: | 1.5-2KW |
|---|---|---|---|
| Speed: | 42 R/min | Warranty: | 1 Year |
| Working Range: | 25-89mm;1''-3'' | Material: | Aluminum/Iron |
| Driving Type: | Hydraulic | ||
| High Light: | cold cutting pipe equipment,split frame pipe cutting machine |
||

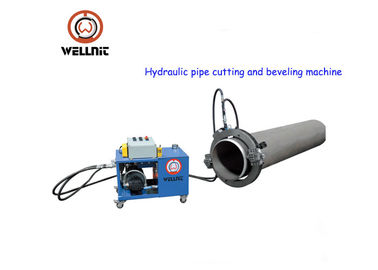

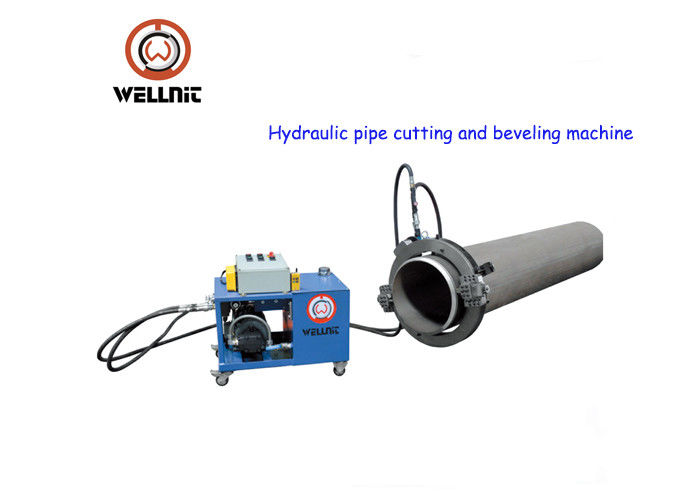

High Efficiency Hydraulic Pipe Cutting And Beveling Machine Stable Clamping
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point,
counterbore and flange facing operations, as well as weld end preparation on open ended pipe.
|
Electric
|
Pneumatic
|
|
NC
|
Hydraulic
|
Tooling
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand
|
Form Style
compound bevel,counter bore
|
Insert style
Angle: 0°, 30°, 37.5°,
|
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCH-89 |
Φ25-89(1”- 3”) |
≤30mm |
42 r/min |
Note: Non-standard machine are available according to customers' requirement.
16 models, working range for pipe OD 1"-48".
Non-standard model can be customized.
Out-mounted style, clamping by multipoint jaws.
Split frame technology, easy to install on the pipeline.
Cold cutting and beveling, don't influence the pipe's material.
Auto feed, cutting and beveling at the one time, cost effective.
Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.
Stationary ring is steel; rotation ring is aluminum, and steel optional.
Electric, pneumatic, numerical control and hydraulic drive options are available.
Several different drive options are available to best position, the motor for a specific machining application.
It can be equipped a wide range of accessories to increase performance and expand
Capability
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
