OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven

OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven
OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven

Large Image :  OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven

Product Details:
Place of Origin: China
Brand Name: wellnit
Certification: ISO,CE
Model Number: SCB-114
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 3-8days
Supply Ability: 500pcs /week
Detailed Product Description
Condition: New Voltage: 220v/380v
Rated Power: 1.1-2.3kw Power: 220-240 1PH 50-60Hz
Motor Power: 1.1-2.3kw Driven Type: Electric,Pneumatic,Hydraulic
Wall Thickness: Bellow 12mm Dimenstion(L*W*H): Machine Model
Warranty: 1year Working Range: 57-114
Application: Stainless Steel,carbon Steel Function: Cutting And Beveling Small Pipe
High Light:

pipe cutter and beveler

,

pipe bevel cutter

OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven

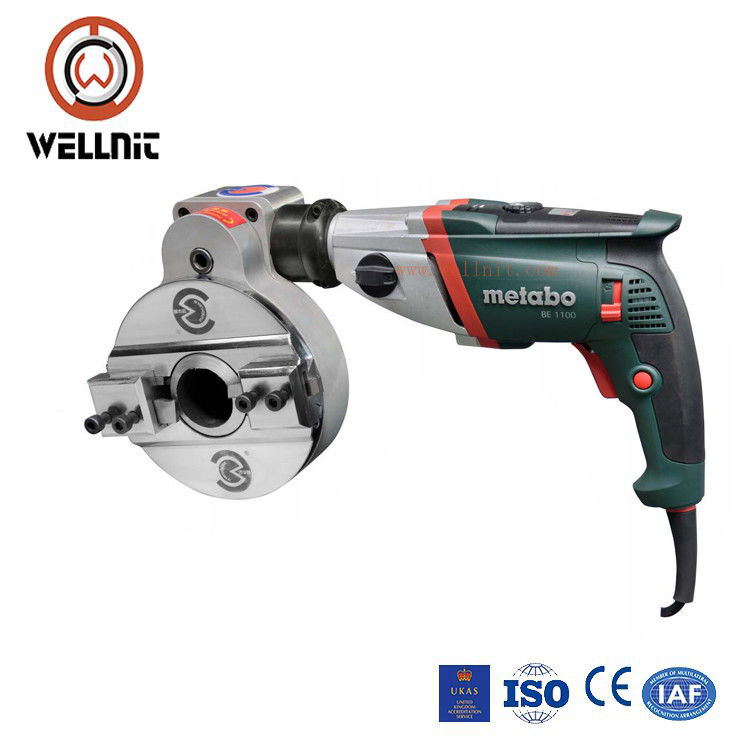

Metabo Motor Metal Pipe Cutting And Beveling Machine SCB-114,

This series machines adopt high strength & precision ring structure, apply for cutting and beveling pipe, especially for batch working of cutting, beveling for thin wall thickness pipe.

It adopts METABO motor: low noise, long life, stable performance and perfect speed adjustable function, with CE certificate.

Power supply: 220-240V 1PH 50/60HZ

  • Drive Options: Pneumatic, Hydraulic, and Electric
  • Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
  • Hydraulic requirement: 2-60L per minute 12.5Mpa
  • Electric requirement:220-240V 1PH 50/60HZ
  • Feed mode: Star wheel, automatically
  • Feed rate: Fixed 0.08mm per circle
  • Packaging: Plywood case
Model Working range Thickness Speed Weight
ESCB-63 Dia. 14~63mm ≤15mm 30~120r/min 13 Kgs
ESCB-114 Dia. 57~114mm ≤15mm 30~120r/min 16 Kgs



Technical parameters of SCB-63 Product :

1.Working Range 14-63mm

2.Wall Thickness ≦12

3.Rotation Speed 30-120r/min

Note:Non-standard machines are available according to customers’requirement.





Order Guide:



Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)



OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven 0

OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven 1OD Mounted Pipe Cutting And Beveling Machine Auto Feed Electric Driven 2

Specification for other Model but driven by Pneumatic and Hydraulic for Automatic Pipe Cold Cutting and Beveling Machines, Pipe Bevellers and pipe end facing



Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min







Model Working Range (ID-OD) Wall Thickness Rotation Speed
OCH-89 Φ25-89 3/4''-3'' ≤35 100r/min
OCH-159 Φ50-159 2''-5'' ≤70 96r/min
OCH-168 Φ50-168 2''-6'' ≤70 90r/min
OCH-230 Φ80-230 3''-8'' ≤70 85r/min
OCH-275 Φ125-275 5''-10'' ≤70 80r/min
OCH-305 Φ150-305 6''-10'' ≤70 73r/min
OCH-325 Φ168-325 6''-12'' ≤70 70r/min
OCH-377 Φ219-377 8''-14'' ≤70 62r/min
OCH-426 Φ273-426 10''-16'' ≤70 58r/min
OCH-457 Φ300-457 12''-18'' ≤70 55r/min
OCH-508 Φ355-508 14''-20'' ≤70 52r/min
OCH-560 Φ400-506 16''-22'' ≤70 52r/min
OCH-610 Φ457-610 18''-24'' ≤70 50r/min
OCH-630 Φ480-630 20''-24'' ≤70 50r/min
OCH-660 Φ508-660 20''-26'' ≤70 50r/min
OCH-715 Φ560-715 22''-28'' ≤70 48r/min
OCH-762 Φ600-762 24''-30'' ≤70 48r/min
OCH-830 Φ660-813 26''-32'' ≤70 45r/min
OCH-914 Φ762-914 30''-36'' ≤70 41r/min
OCH-1066 Φ914-1066 36''-42'' ≤70 32r/min
OCH-1230 Φ1066-1230 42''-48'' ≤70 30r/min
