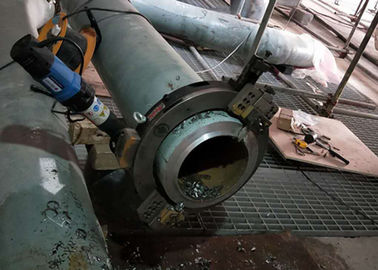

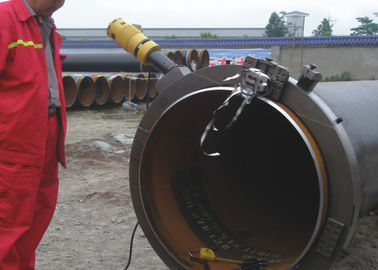

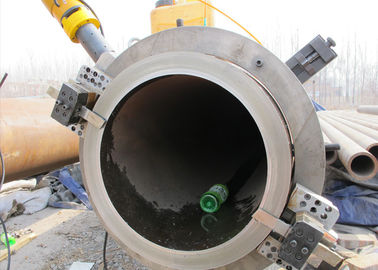

Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel

Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel
Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel

Large Image :  Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO 9001
Model Number: OCE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2100
Packaging Details: plywood
Delivery Time: within 2days after received 100% payment
Payment Terms: T/T
Supply Ability: 10 Sets per month
Detailed Product Description
Power Supply: 240V 2000W Process Material: Carbon Steel , Stainless Steel Etc
Working Range: 1"-56" Wall Thickness: Less Than 30mm (Standard)
High Light:

pipe cutter and beveler

,

pipe bevel cutter



portable electric tube cold cutting and groove machine stainless steel



The main of performance

The series of products produced by our company are special for welded pipes (End Preparation)and field processing and repair pipes.it can cutting and bevel at same time. This product is also called pipe welding equipment.The split frame design convenient for the pipe when the end of pipe is closed.This product can process after welding the convex flange,also can be used for the beveling of U-shaped and V-shaped welded pipe.



The function of Product

1.Lower axial , radial clearance, small radius,lightweight , easy to carry out.

2.Cold process, can't effect the material of pipe , cutting and beveling simultaneously,no spark , no burr.

3.Can separate to two half,its easy for the pipe when two end not open.

4.Easy to operation.

5.Process stainless steel,aluminum alloy etc

5.can U,V,J compound bevel

6.Driven:Electric,Pneumatic,Hydraulic,Metabo

Widely used in petroleum,chemical,boiler etc industry.



Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel 0



The specification of product

Driven Model Working Range(I.D-O.D) Wall Thickness Rotation Speed
  89 25-89 1"-3"   42r/min
  159 50-159 2"-5"   20r/min
  168 50-168 2"-6"   18r/min
  230 80-230 3"-8"   15r/min
  275 125-275 5"-10"   14r/min
OCE 305 150-305 6"-10"   13r/min
Electric 325 168-325 6"-12"   13r/min
  377 219-377 8"-14" Standard 12r/min
OCP 426 273-426 10"-16" <=30mm 12r/min
Pneumatic 457 300-457 12"-18"   12r/min
  508 355-508 14"-20"   12r/min
OCH 560 400-560 16"-22"   12r/min
Hydraulic 610 457-610 18"-24"   11r/min
  630 480-630 20"-24" Heavy-Duty 11r/min
OCM 660 508-660 20"-26" <=100mm 11r/min
Metabo 715 560-715 22"-28"   11r/min
  762 600-762 24"-30"   11r/min
  830 660-813 26"-32"   10r/min
  914 762-914 30"-36"   10r/min
  1066 914-1066 36"-42"   10r/min
  1230 1066-1230 42"-48"   10r/min
  1430 1230-1430 48"-56"   8r/min
Note:Non-Standard Machines are available according to customer's requirement.



OCE mean that driven is Electric



OCP mean that driven is Pneumatic

Pnuematic driven need meet air requirements.

Power supply:0.8-1.0MPa

Air consumption:1000-2000L/Min



OCH mean that driven is Hydraulic

need have hydraulic station



OCM mean that driven is Metabo



Different Model that Working Range is different.



Outside Mounted Electric Tube Cold Pipe Cutting And Beveling Machine For Stainless Steel 1

We are manufacturers, we have professional engineers,

you provide processing requirements and drawings,

we will customize products for you to meet your needs.

The picture above is a customized product (bore hole)

It specializes in processing the inside of pipes.



Before place order ,please provide more details about your pipe,

We will recommend suitable machine to you.

1.PIPE SIZE (O.D):

2.PIPE THICKNESS:

3.PIPE MATERIAL:

4.DRIVEN:

Please check our website. www.zjwellnit.com

Please feel free contact us if you are interested in any product.
