Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

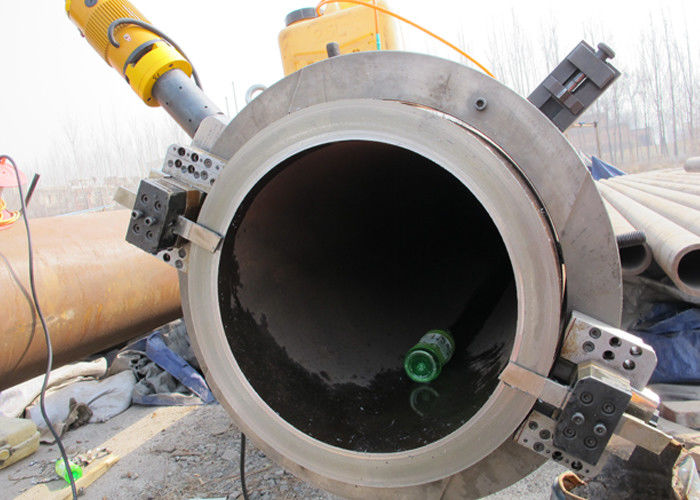

Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power

Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power
Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power

Large Image :  Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO 9001
Model Number: OCE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2100
Packaging Details: plywood
Delivery Time: within 2days after received 100% payment
Payment Terms: T/T
Supply Ability: 10 Sets per month
Detailed Product Description
Working Range (I.D-O.D): 1"-56" Wall Thickness: Less Than 30mm (Standard)
Rotation Speed: 8-42 R/min Driven: Electric , Pneumatic , Hydraulic , Metabo
High Light:

pipe cutter and beveler

,

pipe bevel cutter



2KW power clamshell Pipe cold Cutting And beveling Machine Automatic feed



The main of performance

The series of products produced for metal pipes (carbon steel ,stainless steel ,aluminum alloy etc).suitable for small factory and rush repair work in the field.It can cutting and bevel at same time. High Efficiency,High Precision.The Product have high efficiency,because before packing and sending out ,the product will be tested.This product is also called pipe welding equipment (pipe end polisher).The split frame design and compact design convenient for the pipe when the end of pipe is closed.small working Raduis aThis product can process after welding the convex flange,also can be used for the beveling of U-shaped and V-shaped welded pipe.



The function of Product

1. internal mounted,small radius,suitable for narrow situation

2. light weight , easy to carry out.

3. Cold process, can't effect the material of pipe , no spark , no burr.

4. cutting and beveling simultaneously,high efficiency.

5. Can separate to two half,clamchell

6. Process stainless steel,aluminum alloy etc

7. can U,V,J compound bevel

8. Driven:Electric,Pneumatic,Hydraulic,Metabo

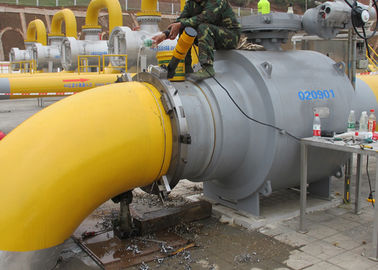

Widely used in petroleum,chemical,boiler pipeinstall etc industry.



Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power 0



The specification of product

Driven Model Working Range(I.D-O.D) Wall Thickness Rotation Speed
  89 25-89 1"-3"   42r/min
  159 50-159 2"-5"   20r/min
  168 50-168 2"-6"   18r/min
  230 80-230 3"-8"   15r/min
  275 125-275 5"-10"   14r/min
OCE 305 150-305 6"-10"   13r/min
Electric 325 168-325 6"-12"   13r/min
  377 219-377 8"-14" Standard 12r/min
OCP 426 273-426 10"-16" <=30mm 12r/min
Pneumatic 457 300-457 12"-18"   12r/min
  508 355-508 14"-20"   12r/min
OCH 560 400-560 16"-22"   12r/min
Hydraulic 610 457-610 18"-24"   11r/min
  630 480-630 20"-24" Heavy-Duty 11r/min
OCM 660 508-660 20"-26" <=100mm 11r/min
Metabo 715 560-715 22"-28"   11r/min
  762 600-762 24"-30"   11r/min
  830 660-813 26"-32"   10r/min
  914 762-914 30"-36"   10r/min
  1066 914-1066 36"-42"   10r/min
  1230 1066-1230 42"-48"   10r/min
  1430 1230-1430 48"-56"   8r/min
Note:Non-Standard Machines are available according to customer's requirement.



OCE mean that driven is Electric



OCP mean that driven is Pneumatic

Pnuematic driven need meet air requirements.

Power supply:0.8-1.0MPa

Air consumption:1000-2000L/Min



OCH mean that driven is Hydraulic

need have hydraulic station



OCM mean that driven is Metabo



Different Model that Working Range is different.



About the machine Warrenty.

One year.(Except for improper operation)



If there are same problems with operation,we will provide you with free technical support.



The Opeation general steps as follows:

1.Measure pipe size(O.D),choose suitable block and install.

2.put machine on the pipe,fixed the machine

3.install the tools

4.start to process



Clamshell Pipe Cold Cutting And Beveling Machine Automatic Feed 2KW Power 1



In the Picture, This our cutting tools and beveling tools

If you just want to cutting ,you can install two cutting tools

If you just want to beveling , you can install two beveling tools

Our machine standard equipped with four tools

2pcs cutting tools and 2pcs beveling tools (30degree and 37.5degree)



We are manufacturers, we have professional engineers,

you provide processing requirements and drawings,

we will customize products for you to meet your needs.

We also can video with you,let our engineers teach you how to use machine.



Before place order ,please provide more details about your pipe,

We will recommend suitable machine to you.

1.PIPE SIZE (O.D):

2.PIPE THICKNESS:

3.PIPE MATERIAL:

4.DRIVEN:
