Product Details:
Payment & Shipping Terms:
|
| Structure: | Split Frame | Wall Thickness: | Less Than 30mm (Standard) <=100mm (Heavy Duty) |
|---|---|---|---|
| Rotation Speed: | 8-42 R/min | Working Range (O.D): | 25-1430mm |
| High Light: | pipe cutter and beveler,pipe bevel cutter |
||

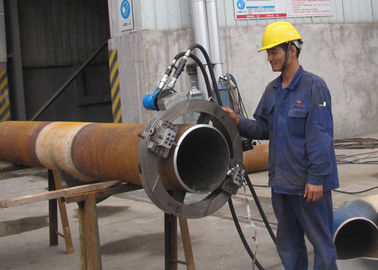

hydraulic Split frame Pipe cold Cutting And chamfering Machine
The Product introduce
The series of products is ideal for all types of pipe cutting ,beveling and end preparation.suitable for small factory and rush repair work in the field.It can cutting and bevel at same time. save time, High Efficiency,High Precision.This product is also called pipe welding equipment (pipe end polisher).It can dislodge burr,bevel to meet weld requirement.The split frame design and compact design allows the machine to split in half at the frame and mounted around.
The products have Small working radius,suitable for many different situation. It can process after welding the convex flange,also can be used for the beveling of U-shaped and V-shaped welded pipe.
The Product have high efficiency,because before packing and sending out ,the product will be tested.so you don't need worried the quality.
The function of Product
(1) internal mounted,small radius,suitable for narrow situation
(2) light weight , easy to carry out.
(3) Cold process, can't effect the material of pipe , no spark , no burr.
(4) cutting and beveling simultaneously,high efficiency.
(5) Can separate to two half, can mounted any position
(6) Process carbon steel , stainless steel, aluminum alloy etc
(7) bevel degree can be customization,U,V,J compound bevel both can process
(8) Driven:Electric,Pneumatic,Hydraulic,Metabo
All machines within products introduction ,manuals in english which is having all the operation.
Widely used in petroleum,chemical,boiler pipeinstall etc industry.
The specification of product
| Driven | Model | Working Range(I.D-O.D) | Wall Thickness | Rotation Speed | |
| 89 | 25-89 | 1"-3" | 42r/min | ||
| 159 | 50-159 | 2"-5" | 20r/min | ||
| 168 | 50-168 | 2"-6" | 18r/min | ||
| 230 | 80-230 | 3"-8" | 15r/min | ||
| 275 | 125-275 | 5"-10" | 14r/min | ||
| OCE | 305 | 150-305 | 6"-10" | 13r/min | |
| Electric | 325 | 168-325 | 6"-12" | 13r/min | |
| 377 | 219-377 | 8"-14" | Standard | 12r/min | |
| OCP | 426 | 273-426 | 10"-16" | <=30mm | 12r/min |
| Pneumatic | 457 | 300-457 | 12"-18" | 12r/min | |
| 508 | 355-508 | 14"-20" | 12r/min | ||
| OCH | 560 | 400-560 | 16"-22" | 12r/min | |
| Hydraulic | 610 | 457-610 | 18"-24" | 11r/min | |
| 630 | 480-630 | 20"-24" | Heavy-Duty | 11r/min | |
| OCM | 660 | 508-660 | 20"-26" | <=100mm | 11r/min |
| Metabo | 715 | 560-715 | 22"-28" | 11r/min | |
| 762 | 600-762 | 24"-30" | 11r/min | ||
| 830 | 660-813 | 26"-32" | 10r/min | ||
| 914 | 762-914 | 30"-36" | 10r/min | ||
| 1066 | 914-1066 | 36"-42" | 10r/min | ||
| 1230 | 1066-1230 | 42"-48" | 10r/min | ||
| 1430 | 1230-1430 | 48"-56" | 8r/min | ||
| Note:Non-Standard Machines are available according to customer's requirement. | |||||
OCE mean that driven is Electric
OCP mean that driven is Pneumatic
Pnuematic driven need meet air requirements.
Power supply:0.8-1.0MPa
Air consumption:1000-2000L/Min
OCH mean that driven is Hydraulic
need have hydraulic station
OCM mean that driven is Metabo
Different Model that Working Range is different.
About the machine Warrenty.
One year.(Except for improper operation)
If there are same problems with operation,we will provide you with free technical support.
The Opeation general steps as follows:
1.Measure pipe size(O.D),choose suitable block and install.
2.put machine on the pipe,fixed the machine
3.install the tools
4.start to process
In the Picture, This our cutting tools and beveling tools
If you just want to cutting ,you can install two cutting tools
If you just want to beveling , you can install two beveling tools
Our machine standard equipped with four tools
2pcs cutting tools and 2pcs beveling tools (30degree and 37.5degree)
We are manufacturers, we have professional engineers,
you provide processing requirements and drawings,
we will customize products for you to meet your needs.
We also can video with you,let our engineers teach you how to use machine.
Before place order ,please provide more details about your pipe,
We will recommend suitable machine to you.
1.PIPE SIZE (O.D):
2.PIPE THICKNESS:
3.PIPE MATERIAL:
4.DRIVEN:
