ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

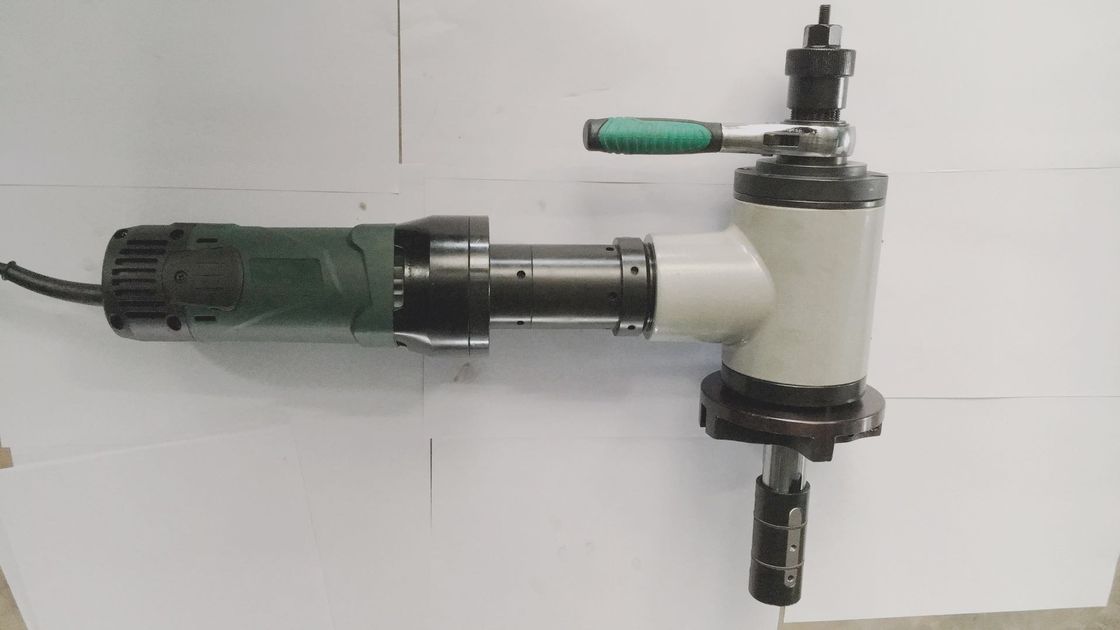

ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120

ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120
ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120 ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120 ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120

Large Image :  ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120

Product Details:
Place of Origin: china
Brand Name: wellnit
Certification: CE,ISO
Model Number: ISE-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 550 SET
Packaging Details: Wooden packing
Detailed Product Description
Product Name: Pipe Beveling Machine Pipe Beveling Tool Pipe Beveler Groove Application:: Stainless Steel, Carbon Steel, Aluminum Alloy Pipe
Function:: Beveling For Pipe End Welding Driven Type:: Electric, Pneumatic
Usage:: Welding Preperation Power:: 220-240V 1 PH 50-60Hz
High Light:

tube bevelling machine

,

pneumatic beveling tools



Products Description for Pipe End Beveling Machine (ISE-120)

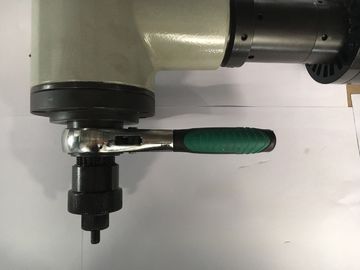

ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.

ID Mounted End Pipe Beveling Machine Pipe Beveler Groove Tool ISE -120 0

Below Technical Specifications for Electry Type Steel Pipe Beveling Machines for Steel Pipe Beveling :



Model Working Range (ID-OD) Wall Thickness Rotation Speed
ISE-30 Φ18-30 1/2''-3/4'' ≤15 50r/min
ISE--80 Φ28-89 1''-3'' ≤15 55r/min
ISE--120 Φ40-120 1 1/4''-4'' ≤15 30r/min
ISE--159 Φ65-159 2 1/2''-5'' ≤20 35r/min
ISE--252-1 Φ80-273 3''-10'' ≤20 16r/min
ISE--252-2 Φ80-273 ≤75 16r/min
ISE--352-1 Φ150-356 6''-14'' ≤20 14r/min
ISE--352-2 Φ150-356 ≤75 14r/min
ISE--426-1 Φ273-426 10''-16'' ≤20 12r/min
ISE--426-2 Φ273-426 ≤75 12r/min
ISE--630-1 Φ300-630 12''-24'' ≤20 10r/min
ISE--630-2 Φ300-630 ≤75 10r/min
ISE--850-1 Φ490-850 24''-34'' ≤20 9r/min
ISE--850-2 Φ490-850 ≤75 9r/min




Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :

Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
ISP-30 Φ18-30 1/2''-3/4'' ≤15 60r/min 0.6MPa 900 L/min
ISP--80 Φ28-89 1''-3'' ≤15 50r/min 0.6MPa 900 L/min
ISP--120 Φ40-120 1 1/4''-4'' ≤15 38r/min 0.6MPa 900 L/min
ISP--159 Φ65-159 2 1/2''-5'' ≤20 35r/min 0.6MPa 1000 L/min
ISP--252-1 Φ80-273 3''-10'' ≤20 16r/min 0.6MPa 1000 L/min
ISP--252-2 Φ80-273 ≤75 16r/min 0.6MPa 1000 L/min
ISP--352-1 Φ150-356 6''-14'' ≤20 14r/min 0.6MPa 1200 L/min
ISP--352-2 Φ150-356 ≤75 14r/min 0.6MPa 1200 L/min
ISP--426-1 Φ273-426 10''-16'' ≤20 12r/min 0.7MPa 1500 L/min
ISP--426-2 Φ273-426 ≤75 12r/min 0.7MPa 1500 L/min
ISP--630-1 Φ300-630 12''-24'' ≤20 10r/min 0.7MPa 1500 L/min
ISP--630-2 Φ300-630 ≤75 10r/min 0.7MPa 1500 L/min
ISP--850-1 Φ490-850 24''-34'' ≤20 9r/min 0.7MPa 1500 L/min
ISP--850-2 Φ490-850 ≤75 9r/min 0.7MPa 1500 L/min
