ISM-120 PIPE BEVELING PORTABLE MACHINE

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

ISM-120 PIPE BEVELING PORTABLE MACHINE

ISM-120 PIPE BEVELING PORTABLE MACHINE
ISM-120 PIPE BEVELING PORTABLE MACHINE ISM-120 PIPE BEVELING PORTABLE MACHINE ISM-120 PIPE BEVELING PORTABLE MACHINE

Large Image :  ISM-120 PIPE BEVELING PORTABLE MACHINE

Product Details:
Place of Origin: CHINA
Brand Name: wellnit
Certification: ISO,CE
Model Number: ISM-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1200SET
Packaging Details: Wooden packing
Supply Ability: 30SETS PER WEEK
Detailed Product Description
Thickness:: Less Than 15mm Rotation Speed:: 30r/min
Motor:: Electric Motor Mounted Type: OD-Mounted: OD-Mounted
Power:: 1.1-2.3KW Power Supply:: 220V
Frequency:: 50HZ
High Light:

plate chamfering machine

,

plate edge beveling machine

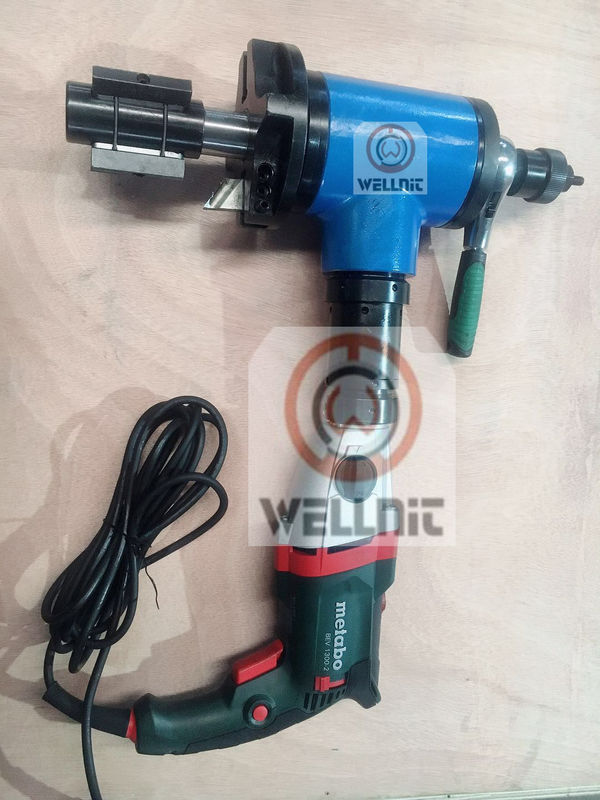

Quality ISM-120 Pipe Beveling Machine Adopts METABO Motor





This series is ISM-352-1 High Quality Machine For Pipe Chamfering with the following advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-OEC,Pneumatic-OCP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.
  • ISM-120 PIPE BEVELING PORTABLE MACHINE 0

ISM-120 PIPE BEVELING PORTABLE MACHINE 1





  • The specification of product

    Driven Model Working Range(I.D-O.D) Wall Thickness Rotation Speed
      30 18-30 2/3"-3/4" <=15mm 50r/min
      80 28-89 1"-3" <=15mm 55r/min
    ISE 120 40-120 11/4"-4" <=15mm 30r/min
    Electric 159 65-159 21/2"-5" <=20mm 35r/min
      252-1 80-273 3"-10" <=20mm 16r/min
      352-1 150-356 6"-14" <=20mm 14r/min
    ISP 426-1 273-426 10"-16" <=20mm 12r/min
    Pneumatic 630-1 300-630 12"-24" <=20mm 10r/min
      850-1 600-850 24"-34" <=20mm 9r/min
      252-2 80-273 3"-10" <=75mm 16r/min
    ISM 352-2 150-356 6"-14" <=75mm 14r/min
    Metabo 426-2 273-426 10"-16" <=75mm 12r/min
      630-2 300-630 12"-24" <=75mm 10r/min
      850-2 600-850 24"-34" <=75mm 9r/min
    Note:Non-Standard Machines are available according to customer's requirement.

Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  •
