Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time

Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time
Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time

Large Image :  Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-252-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Offer: 220-240V 50-60Hz Operation Way: Penumatic
Thickness: Less Than 75 (Standard) Speed Rotation: 14r/min
Working WAY: No Spark,Cold Working Fix Method: Inside Mounted
Working Range: 80-240mm(Inside Diameter)
High Light:

tube bevelling machine

,

pneumatic beveling tools



Heavy Duty Pneumatic Pipe Chamfering Machine With Factory Price

Production Description

This series is Air Operated Welding Preparation Pipe Beveling Machine with the following advantages:
Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.









Technical Parameter





ISP-252-2 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦75
Working Range 80-240mm
Rotation Speed 14r/min
Net Weight

88kg






Model
Working Range(ID-OD) Wall Thickness(mm) Rotation Speed(r/min)
ISP-30 Φ18-30 1/2"-3/4" ≤15 60
ISP-80 Φ28-89 1"-3" ≤15 55
ISP-120 Φ40-120 11/4"-4" ≤15 38
ISP-159 Φ65-159 21/2"-5' ≤20 35
ISP-252-1 Φ80-273 3"-10" ≤20 16
ISP-252-2 Φ80-273 ≤75 16
ISP-352-1 Φ150-356 6"-14" ≤20 14
ISP-352-2 Φ150-356 ≤75 14
ISP-426-1 Φ273-426 10"-16" ≤20 12
ISP-426-2 Φ273-426 ≤75 12
ISP-630-1 Φ300-630 12"-24" ≤20 10
ISP-630-2 Φ300-630 ≤75 10
ISP-850-1 Φ490-850 24"-34" ≤20 9
ISP-850-2 Φ490-850 ≤75 9


Non-standard machines are available according to customers’requirement.



Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)

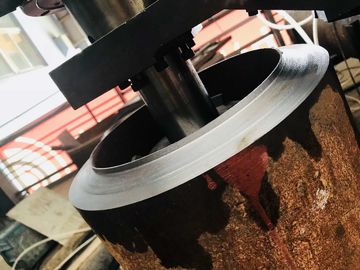

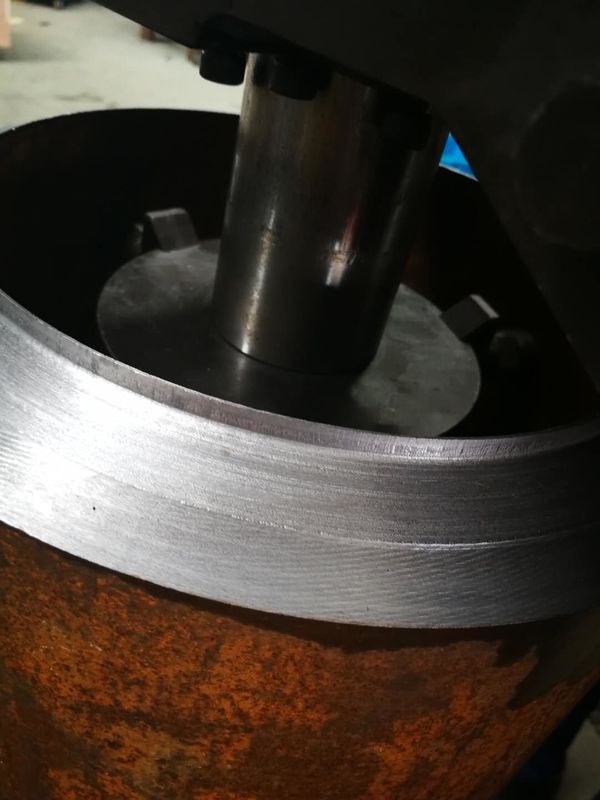

Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time 0Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time 1Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time 2Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time 3
Machine used in bellowing indutry:

Simple Installation Pneumatic Pipe Beveling Machine With Long - Life Time 4
