Product Details:
Payment & Shipping Terms:
|
| Power Offer: | 220-240V 50-60Hz | Operation Way: | Penumatic |
|---|---|---|---|
| Thickness: | Less Than 75 (Standard) | Speed Rotation: | 14r/min |
| Working WAY: | No Spark,Cold Working | Fix Method: | Inside Mounted |
| Working Range: | 150-330mm(Inside Diameter) | Material: | Iron |
| High Light: | tube bevelling machine,pneumatic beveling tools |
||

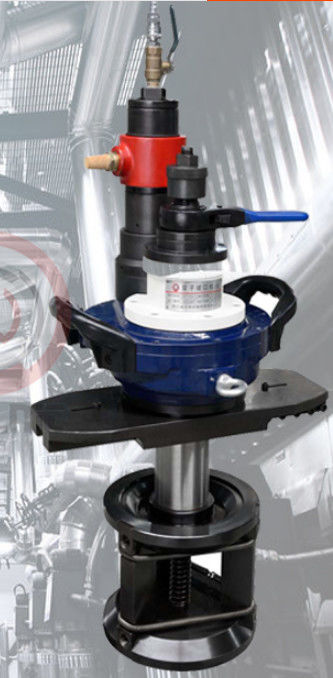

Heavy Duty Pneumatic Pipe Chamfering Machine With Factory Price
Production Description
This series is Air Operated Welding Preparation Pipe Beveling Machine with the following advantages:
Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.
Technical Parameter
| ISP/ISE-252-2 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦75 |
| Working Range | 80-240mm |
| Rotation Speed | 14r/min |
| Net Weight |
88kg
|
Model |
Working Range(ID-OD) | Wall Thickness(mm) | Rotation Speed(r/min) | |
| ISP/ISE-30 | Φ18-30 | 1/2"-3/4" | ≤15 | 60 |
| ISP/ISE-80 | Φ28-89 | 1"-3" | ≤15 | 55 |
| ISP/ISE-120 | Φ40-120 | 11/4"-4" | ≤15 | 38 |
| ISP/ISE-159 | Φ65-159 | 21/2"-5' | ≤20 | 35 |
| ISP/ISE-252-1 | Φ80-273 | 3"-10" | ≤20 | 16 |
| ISP/ISE-252-2 | Φ80-273 | ≤75 | 16 | |
| ISP/ISE-352-1 | Φ150-356 | 6"-14" | ≤20 | 14 |
| ISP/ISE-352-2 | Φ150-356 | ≤75 | 14 | |
| ISP/ISE-426-1 | Φ273-426 | 10"-16" | ≤20 | 12 |
| ISP/ISE-426-2 | Φ273-426 | ≤75 | 12 | |
| ISP/ISE-630-1 | Φ300-630 | 12"-24" | ≤20 | 10 |
| ISP/ISE-630-2 | Φ300-630 | ≤75 | 10 | |
| ISP/ISE-850-1 | Φ490-850 | 24"-34" | ≤20 | 9 |
| ISP/ISE-850-2 | Φ490-850 | ≤75 | 9 | |
Non-standard machines are available according to customers’requirement.
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
