Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted

Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted
Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted

Large Image :  Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001
Model Number: OC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2880/set
Packaging Details: plywood
Delivery Time: within 7 days
Payment Terms: T/T
Supply Ability: 30set /month
Detailed Product Description
Applicable Thickness: Less Than 100mm Feeding: 0.08mm
Warranty: 1 Year Speed Of Rotate: 8-42r/min
High Light:

pipe cutter and beveler

,

pipe bevel cutter



Multi-function cold Pipe Cutting And Beveling Machine OD Mounted

INTRODUCE:



OC Series Split frame type Servo-electric pipe cutting and beveling machine are mainly used for on-site pipe processing.Each set of machine equip with strong and stable power source.During the cutting process,Fixed the cutting machine on the pipe,cutter will rotate and cut the pipe automatically. Large cutting capacity ,high efficiency, no cutting glitches, no deformation, simultaneously finished cutting and beveling.

The different customizing bevel knife, can finished different angles of the beveling and cutting.

Widely used in pipe cutting and beveling of petroleum, petrochemical, beer, dairy beverage, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power and other industries.

At the same time according to customers requirements can be customized non-standard specifications, cutting non-standard bevel.



SPECIFICATION:

Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted 0

FEATURES:



· Split frame technology, easy to install in pipeline.

· Out-mounted, clamping by multipoint jaws.

· Cold cutting, don’t influence the pipe’s material.

· Auto feed, cutting and beveling the pipe at the same time, cost effective.

· Variety of beveling shape:“U”,“V”,“J”, double “V”, compound bevels.

· Can process material: carbon steel, alloy steel, stainless steel, non-ferrous metal, engineering plastic and cast steel

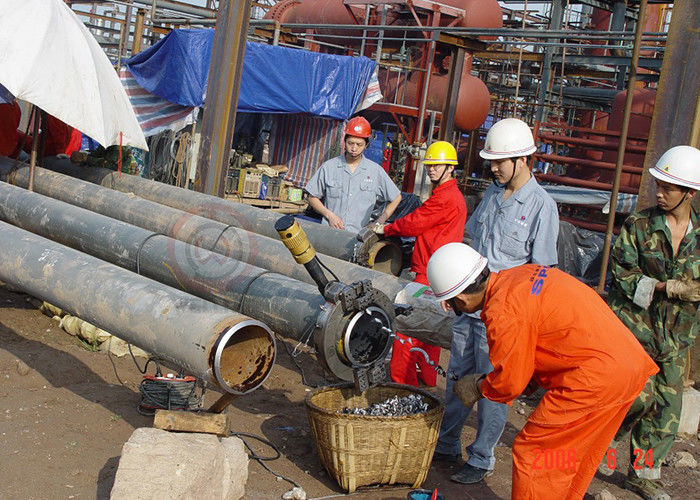

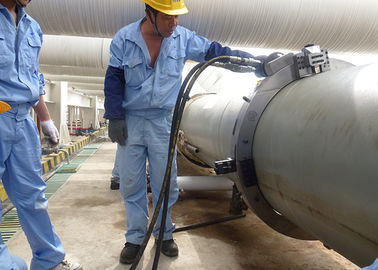

· Pipeline construction site, beveling process for the all sizes of pipes & pressure vessels & steam generator.

· Application: petroleum, chemical, natural gas, power supply construction, boiler and nuclear power.

Multi - Function Cold Pipe Cutting And Beveling Machine OD Mounted 1
