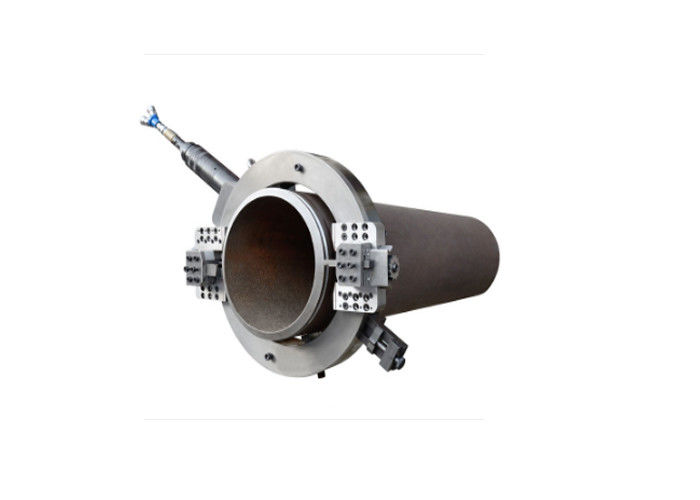

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding
Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding

Large Image :  Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001
Model Number: OCH-1230
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: with 7 days
Payment Terms: T/T
Supply Ability: 300set /month
Detailed Product Description
Key Selling Points: Compatitive Price Rotation Speed: 10r/min
Thickness: Less Than 70mm Mounted Type: OD Mounted
Material: Metal Working Range: 42"-48"
High Light:

pipe cutter and beveler

,

pipe bevel cutter

Light Weight Pipe Split Frame Cold cutting beveling machine Clamshell Portable Automatic Feeding



The series machine is ideal for Pipe inside beveling. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe.





Applications:

Oil & Gas ,Power Plant,Chemical Plant,Nuclear Power,Process Plant & Fabrication,Ship Building & Repair



Advantages:

Cold Cutting and Beveling improves safety,Cutting and Beveling simultaneous​,Split Frame: easy mounted on pipeline,Tools feed automatically,Fast, Precision, On-site Beveling,Minimal Axial and Radial clearance,Light weight and compact design,Easy set-up & Operation,Electric or Pneumatic or Hydraulic driven,Machining heavy-wall pipe from 3/4” up to 56”



Specifications:

  • Drive Options: Pneumatic, Hydraulic, and Electric
  • Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
  • Hydraulic requirement: 2-60L per minute 12.5Mpa
  • Electric requirement:220-240V 1PH 50/60HZ
  • Feed mode: Star wheel, automatically
  • Feed rate: Fixed 0.08mm per circle
  • Packaging: Plywood case

Machine Operation Types:



Penumatic,Hydraulic power pack,CNC

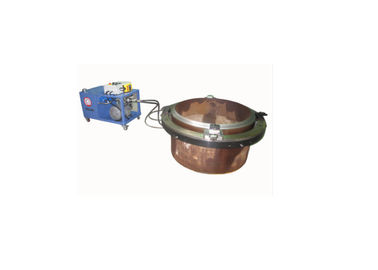

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 0



Tech date sheet:

OD-Mounted Hydraulie Type :


Model Working Range (ID-OD) Inch Wall Thickness Rotation Speed
OCE-89 Φ25-89 3/4''-3'' ≤35 100r/min
OCE-159 Φ50-159 2''-5'' ≤70 96r/min
OCE-168 Φ50-168 2''-6'' ≤70 90r/min
OCE-230 Φ80-230 3''-8'' ≤70 85r/min
OCE-275 Φ125-275 5''-10'' ≤70 80r/min
OCE-305 Φ150-305 6''-10'' ≤70 73r/min
OCE-325 Φ168-325 6''-12'' ≤70 70r/min
OCE-377 Φ219-377 8''-14'' ≤70 62r/min
OCE-426 Φ273-426 10''-16'' ≤70 58r/min
OCE-457 Φ300-457 12''-18'' ≤70 55r/min
OCE-508 Φ355-508 14''-20' ≤70 52r/min
OCE-560 Φ400-560 16''-22'' ≤70 52r/min
OCE-610 Φ457-610 18''-24'' ≤70 50r/min
OCE-630 Φ480-630 20''-24'' ≤70 50r/min
OCE-660 Φ508-660 20''-26'' ≤70 50r/min
OCE-715 Φ560-715 22''-28'' ≤70 48r/min
OCE-762 Φ600-762 24''-30'' ≤70 48r/min
OCE-830 Φ660-813 26''-32'' ≤70 45r/min
OCE-914 Φ762-914 30''-36'' ≤70 41r/min
OCE-1066 Φ914-1066 36''-42' ≤70 32r/min
OCE-1230 Φ1066-1230 42''-48'' ≤70 30r/min
OCE-1430 Φ1230-1430 48''-56'' ≤70 28r/min




Machine in detail show:

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 1

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 2

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 3

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 4

Packaging & Shipping



Packaging: Standard machine will be ready and stabled in a wooden case.

Shipping: Able to support with any shipping method as per customer 's requirements.

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 5







COMPANY INTRODUCTION:



Zhejiang Wellnit Mechanical Technology Co.,Ltd (Original:Wenzhou Huakai Co.,Ltd)is a professional manufacture and exporter that is concerned with the design,development and production of pipe cutting and beveling machine,portable plate beveling machine.

The products include :

  • O.D. mounted light & heavy-duty pipe cutting and beveling machine,
  • I.D. mounted pipe beveling machine,
  • portable plate beveling machine.
  •  flange facing machines.

we have recieved ISO9001:2008,CE certificates etc.

We are dedicate to continuing the spirit of innovation , manufacturing excellence, enthusiastic work force and the superb after sale service ,we are confident our future will be more and more successful.

To be honest, pioneer and enterprising, seek for truth and innovation" is our credo.

And "Your satisfaction is our great success"

Light Weight Pipe Split Frame Cold Cutting Beveling Machine Automatic Feeding 6

Order Guide:



Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)
