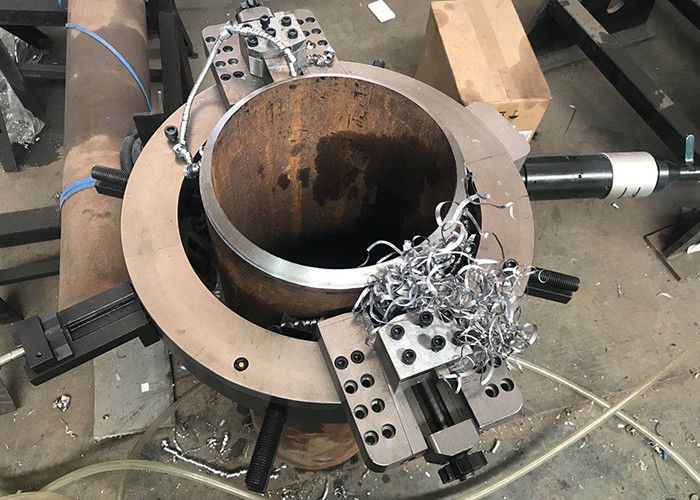

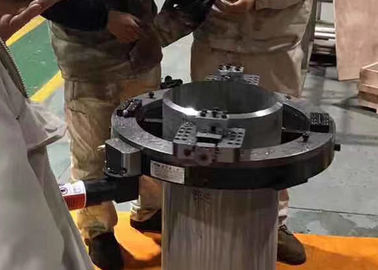

Automatic Feed 1.0MPa Pneumatic Pipe Cutting Beveling Machine

Automatic Feed 1.0MPa Pneumatic Pipe Cutting Beveling Machine
Automatic Feed 1.0MPa Pneumatic Pipe Cutting Beveling Machine
video play

Large Image :  Automatic Feed 1.0MPa Pneumatic Pipe Cutting Beveling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001 ; CE
Model Number: OCP
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $2580
Packaging Details: Plywood
Delivery Time: within 5days
Payment Terms: T/T
Supply Ability: 15set+per month
Detailed Product Description
Air Pressure: 1.0MPa Air Consumption: 2000L/min
Working Range: 1" To 56" Wall Thickness: Less Than 30mm (Standard)
High Light:

1.0MPa Pneumatic Pipe Cutting Beveling Machine

,

2000L/min Pneumatic Pipe Cutting Beveling Machine

,

30mm Pneumatic Pipe Cutting Beveling Machine

Automatic Feed Pneumatic Pipe Cutting And Beveling Machine High Efficiency



Product Performance



Pipe cutting and beveling machine is high efficiency machine.Machine can cutting and beveeling at same time. Automatic Feed , one worker can operation servel machine at same time.Cold process , can't effect pipe material , after bevel , the surface is very smoothly,don't need pickling , can weld directly.Flaw detection quality very good. the machine can widely used in the fields of petroleum,chemical,natural gas,power supply construction,boiler and nuclear power,such as the project of west gas transporting to east china.



Function of Products

  • small working radius , suitable for any different working condition.
  • compact design, light weight ,easy to operation
  • Can cutting and beveling at same time.
  • Can separate to two half, suitable for pipe when two end can’t open.
  • The tool not only can process carbon steel , stainless steel and alloy pipe.
  • Bevel Type: “V” ;“U” ; “J” ; compound bevel ; counter boring etc.
  • Pneumatic Driven, More stable performance , Explosion Proof.

Bevel Type

Automatic Feed 1.0MPa Pneumatic Pipe Cutting Beveling Machine 0



Specification



Model Working Range (O.D) Wall Thickness Rotation Speed
OCP-89 25-89mm Less Than 30mm 42 r/min
OCP-168 50-168mm Less Than 30mm 22 r/min
OCP-230 80-230mm Less Than 30mm 15 r/min
OCP-275 125-275mm Less Than 30mm 14 r/min
OCP-305 150-305mm Less Than 30mm 13 r/min
OCP-325 168-325mm Less Than 30mm 13 r/min
OCP-377 219-377mm Less Than 30mm 12 r/min
OCP-426 273-426mm Less Than 30mm 12 r/min
OCP-457 300-457mm Less Than 30mm 12 r/min
OCP-508 355-508mm Less Than 30mm 12 r/min
OCP-560 400-560mm Less Than 30mm 12 r/min
OCP-610 457-610mm Less Than 30mm 11 r/min
OCP-630 480-630mm Less Than 30mm 11 r/min
OCP-660 508-660mm Less Than 30mm 11 r/min
OCP-715 560-715mm Less Than 30mm 11 r/min
OCP-762 600-762mm Less Than 30mm 11 r/min
OCP-830 660-830mm Less Than 30mm 10 r/min
OCP-914 762-914mm Less Than 30mm 10 r/min
OCP-1066 914-1066mm Less Than 30mm 10 r/min
OCP-1230 1066-1230mm Less Than 30mm 10 r/min
OCP-1430 1230-1430mm Less Than 30mm 8 r/min



Order Guide

  • pipe size (O.D) :
  • pipe thickenss :
  • pipe material :

I will recommend suitable machine for you!
