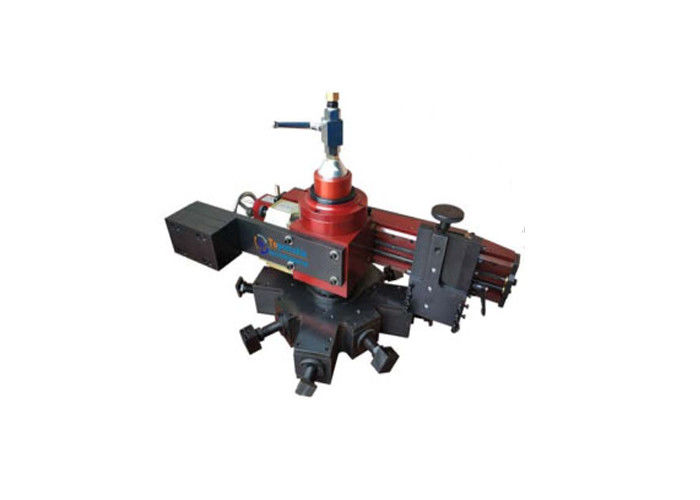

Auotomatic Feeding Pneumatic Motor Portable Flange Facing Machine

Auotomatic Feeding Pneumatic Motor Portable Flange Facing Machine
Auotomatic Feeding Pneumatic Motor Portable Flange Facing Machine
video play

Large Image :  Auotomatic Feeding Pneumatic Motor Portable Flange Facing Machine

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001
Model Number: WFP-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: wellnit
Packaging Details: Plywood Box
Delivery Time: with 7 days
Payment Terms: T/T, L/C
Supply Ability: 10SETS PER WEEK
Detailed Product Description
Power:: Servo Motor/pneumatic Clamping: 158-820 Mm
Toolpost Travel(Axial Feed Length):: 102mm Facing Diameter:: 160-1010mm
R.P.M:: 0-33RPM Single Package Size:: 91X73X78 Cm
High Light:

Auotomatic portable flange facing machine

,

Pneumatic portable flange facing machine

,

33RPM portable flange facing machine

WFP1000 ID Flange Facing Machine 1/Portable Flange Facing Machine With Hand Power Easy To Set up

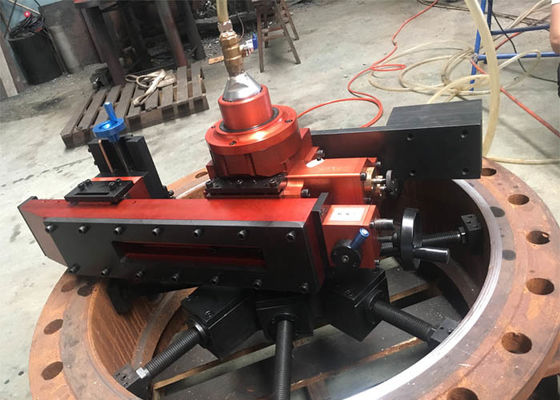

An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld preparation and counter boring.

• Lightweight, precision construction to optimise on-site performance •Modular components make setup quick and easy •Latest linear technology–delivering a robust, reliable operation •Three speed continuous feed gearbox, for gramophone finish •Quick set adjustable clamping jaws, minimising set up time



Facing Diameter
160-1010mm
Clamping Diameter
158-820 mm
Drive
Servo Motor/Pneumatic
Toolpost Travel(Axial Feed Length)
102mm
Feed Rates(Facing)
0.13 0.16 0.19 0.24 0.38 0.50 (mm/r)
Feed Rates(Boring)
0.10 0.12 0.14 0.18 0.28 0.36 (mm/r)
Installation Form
Internal mount. Level & Vertical
Machining Form
Facing & Boring & RTJ & Groove
Flatness
<0.1mm
Roughtness
<Ra3.2
Power
Servo motor / Pneumatic motor

Auotomatic Feeding Pneumatic Motor Portable Flange Facing Machine 0



FAQ
1.Are you manufacturer or trade company?
We are Professional manufacturer of portable machine tools.

2.Can you help us choose the right machine?
Yes, We can. Specify your needs. Like : the diameter of bore, the distance between the two holes. If you can offer us the workpiece drawing or photos will be better. We will recommmed you the proper machine or do custom design for you.

3.What kind of portable machine tools do you manufature?
Now our products cover portable line boring machine, portable flange facer, portable milling machine, orbital milling machine, portable lathe, portable valve repair machine, etc.

4.How to pay it?
We accept many type of payment. T/T, L/C, Paypal, West Unit, Trade Assurance, and other type of payment.If you haven't used these payment before, we can teach you to use them with you.


Auotomatic Feeding Pneumatic Motor Portable Flange Facing Machine 1
