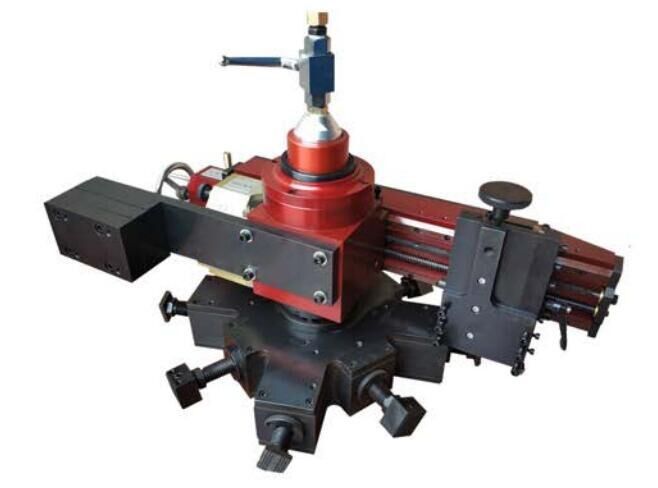

Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer

Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer
Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer
video play

Large Image :  Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001
Model Number: WFP-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD10000 PER SET
Payment Terms: L/C, T/T
Supply Ability: 10SETS PER WEEK
Detailed Product Description
Mount Range: 145-813mm Motor: Pneumatic
Name: Portable Flange Facing Machine Rpm: 0-33mm
Working Range: 150-1000mm
High Light:

813mm flange facer

,

813mm Pneumatic flange facer

,

1000mm flange facer

Installation Portable Flange Facing Machine With Pneumatic Motor

Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer 0Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer 1



Product Description



Portable ID flange facer seal groove flange facing machine parameter



Facing diameter 150-1000mm
ID Mount diameter 145-813mm
Motor power Pneumatic
Tool post 102mm
Speed 0-33rpm





Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer 2



Technicial Parameter

Working diameter: 150-1000mm

Power: pneumatic motor



Benefits:

• Exceedingly versatile

• Highly portable

• Latest linear technology

• High efficiency

• Low noise level 2.0hp drive

• Storage/shipping box

• CE certificate



WFP1000 flange facer operation dimension:







Quick and Easy Setup & Removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.



Lightweight

• Primary of machine weighs only 265 lbs (121 kg).

• Smallest mounting chuck weighs about 17 lbs (4.2 kg).



Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.



Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.



Cuts Chamfers and Grooves

• Compound tool head and downfeed for cutting angles and grooves.





Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer 3
Advantages



The rigid and versatile WFP1000 delivers high-torque performance to quickly re-face flanges and repair sealing and bearing surfaces efficiently and cost-effectively

• Powered 360° tool post - for a wider range of machining operations

• Three speed continuous feed gearbox, for gramophone finish

• Quick set adjustable clamping jaws, minimize set up time



Face surface result



Pneumatic Inner Hole Heat Exchanger 813mm Flange Facer 4
Company Information



Zhejiang Wellnit Mechanical Technology Co.,Ltd located in the No.601,Anxing Road,Shacheng Street Economic and Technological Development Zone,Wenzhou,Zhejiang. We are specialized in research, manufacture, sales and after sales the pipe beveling, pipe cutting/beveling and plate beveling equipment. The 9 series products are well accepted in domestic, and Middle East. Rely on the quality and capacity, we approval the ISO9001 quality system, also we have the perfect after sales system, got good reputation from our clients. Our products apply for oil & gas, pressure vessel, ship building, nuclear power and fossil fuel/power, also are more and more applied for rush to repair project, we make contributions to enhance their efficiency,

We have experienced teamconcentrate on technology and research, this is the base forour growth and be stronger. We keep moving forwards in this field, still keep at customer orientation, supply good service. To be honest, exploitation and enterprising, seek truth and innovation are our credo. Your satisfaction is our great success.






Our Services



wellnit plate and pipe beveling cutting machine factory for many years,we are experience in producing beveling machines, based on good quality

but our price is much competitive.welcome visit our factory if have chance.

Our product range:

• OD-Mounted Cutting and Beveling Machine

• Internal Expansion Type Pipe Beveling Machine

• Portbale Plate Beveling Machine

• Automatic Plate Milling Machine

• Hydraulic wrench ,hydraulic pump and other tools

• Flame/plasma/CNC cuting welding machines

• Flange facing Machine(Internal and External)






Packaging & Shipping

Portable ID flange facer seal groove flange facing machine adopts export wooden package
