Portable Electric 1800w 2000W Pipe Cutting And Beveling Machine

Portable Electric Pipe Cutting Beveling Machine High Precision

Product Performance

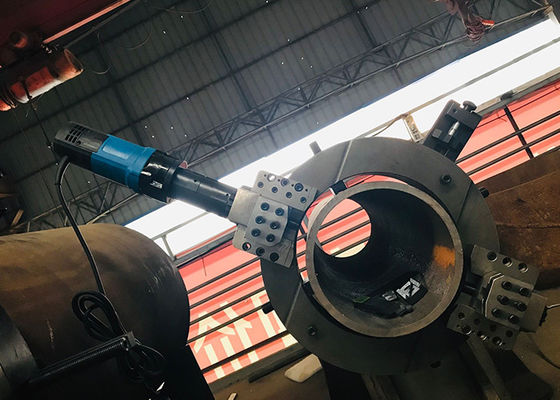

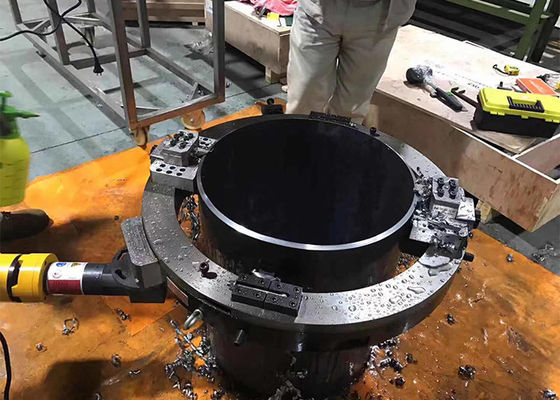

The series machine is OD mounted machine, According to pipe outside diameter size to choose suitable model. split frame type make machine can install pipe any position. Compact design make machine portable , light weight. The machine can only cutting , only beveling , can cutting and beveling at same time. More efficiency. The machine working direction can not be limited. Vertical, horizontal , reverse etc.


Electric Driven

Electric motor specification:

Wellnit customized motor

voltage:220-240V

frequency:50-60Hz

Power:1800/2000W

Electric Current : 9-10A

Power Factor: >0.9

Advantage

Simple Operation

Use Convenient

Electric Motor Specification:

METABO motor

model:W24-230MVT

230V-50/60Hz 2400W 11A

N 6600/Min (RPM)

Made in Germany

Advantage

Overload protection

Rotation speed can be adjustable

Tool Holder Choose

Name	Picture
Standard Tool Slide   achieve cut/bevel up to 30mm
Heavy wall Tool Slide   achieve cut/bevel up to 70mm
Bridge Tool Slide   achieve cut/bevel up to 100mm in multi passes, also can process flange facing
Tracking Tool Slide   O.D tracking slide compensate for out of round pipe travel along the O.D makes the bevel face balanced usually apply on large size diameter pipe

Bevel Type


Specification

Order Guide

• pipe size (O.D) :
• pipe thickenss :
• pipe material :

I will recommend suitable machine for you!
