42rpm 610mm ID Portable Flange Facing Machine

Portable Flange Facers for resurfacing pipe and tube  flange facing machine WFP-1000



ID flange facer seal groove flange facing machine wellnit

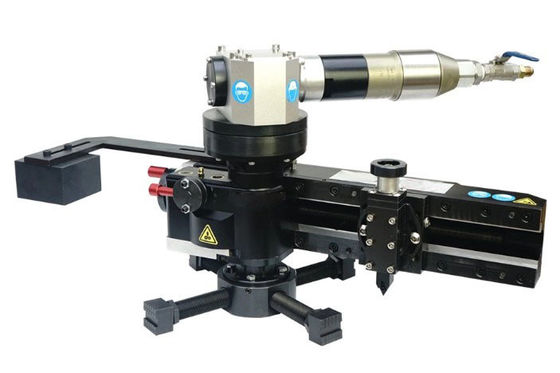

WFP-1000 portable flange facer is a reliable product,

The rigid and versatile WFP-1000 delivers high-torque performance to quickly re-face flanges and repair sealing and bearing surfaces efficiently and cost-effectively

• Powered 360° tool post – for a wider range of machining operations

• Three speed continuous feed gearbox, for gramophone finish

• Quick set adjustable clamping jaws, minimize set up time



Two operation types:





Typical applications:



Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair

• Piping system flanges

• Valve flanges and bonnet flanges

• Heat exchanger flanges

• Vessel flanges

• Flange faces on piping systems

• Pump housing flanges

• Weld preps

• Tube sheet bundles.

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal flange.



WFP-1000 Portable ID flange facer seal groove flange facing machine parameter

Facing diameter	150-1000mm
ID Mount diameter	145-813mm
Motor power	Pneumatic
Tool post	102mm
Speed	0-33rpm





Main advantages:



• Exceedingly versatile

• Highly portable

• Latest linear technology

• High efficiency

• Low noise level 2.0hp drive

• Storage/shipping box

• CE certificate



Machine features:



WFP-610 machine is inside mounted in pipe or flange, and can process inner hole of the flange, the outer circle and various sealing surfaces (RF, RTJ, etc.).Portable flange facing machine, it's powerful and versatile tools which makes it cut through the toughest material and work on a wide range of face diameter.

• Compact structure ,Light weight ,easy to carry out.
• Have scale of feed handwheel ,improve feed accuracy
• Automatic feeding in the axial direction and the radial direction,high efficiency
• Horizontal, vertical, inverted, tilt etc,any direction both can processed.
• Can process flat face, water line, Continuous groove,RTJ groove etc
• Driven: Pneumatic,Hydraulic,CNC

All Model Machine Technical Parameters:





.

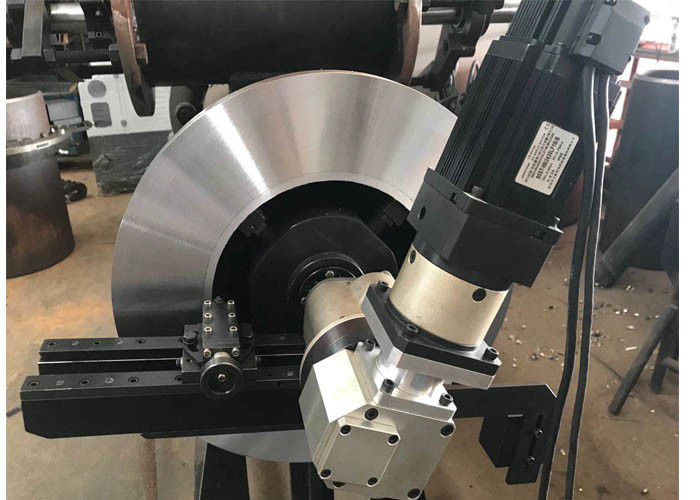

Machine on site:











Machine advantages:



Quick and Easy Setup & Removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.



Lightweight

• Body of machine weighs only 99 lbs (45 kg).

• Smallest mounting chuck weighs about 5 lbs (2.2 kg).



Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.



Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.



Cuts Chamfers and Grooves

• Compound tool head and downfeed for cutting angles and grooves.



WFP-610 can be used in horizontally,verically or overhead planes.







Packing pictures:









package :

size :

77 x 51 x 55cm -

Weight:

62kg+18kgs wooden box in total (Aluminum box+wooden box)

Easy to carry and reliable quality on site shipping.
