Home ProductsPneumatic Pipe Beveler

20mm Tube 3" Cold Pipe Beveling Machine

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

20mm Tube 3" Cold Pipe Beveling Machine

20mm Tube 3" Cold Pipe Beveling Machine
20mm Tube 3" Cold Pipe Beveling Machine 20mm Tube 3" Cold Pipe Beveling Machine

Large Image :  20mm Tube 3" Cold Pipe Beveling Machine

Product Details:
Place of Origin: WENZHOU,CHINA
Brand Name: Wellnit
Certification: ISO9001,CE
Model Number: NISP-252-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 8200 SET
Packaging Details: Aluminum package inside and Plywood Box outside
Delivery Time: with 7 work days (To be negotiated)
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 20 Set/Sets per Month
Detailed Product Description
Material: Metal Condition:: New
Video Outgoing-inspection:: Provided Machinery Test Report:: Provided
Marketing Type: Ordinary Product Warranty Of Core Components:: 1 Year
Core Components:: Engine, Gearbox, Motor, Gear After-sales Service Provided:: Free Spare Parts, Online Support, Video Technical Support
Key Selling Points:: High-accuracy Machine Name: Pipe Tube Resurface Machine
Model:: NISP-252-1 Thickness:: Less Than 20mm
Working Rangeel:: (ID-OD): 3''-10'' Drive Motor:: Pneumatic/Electric Motor/Servo
NW/GW:: 45/62kg Speed:: 16R/MIN
Application:: Oil And Gas , Pipe Plant Machine Type:: Chamfering Machine
Port: Shanghai Mounted Type:: ID-Mounted
High Light:

20mm cold pipe beveling machine

,

3" cold pipe beveling machine

,

20mm cold tube beveling machine

Cold Pipe Beveling Machine price,Tube Beveling Machine, Pipe Beveler for sale



This series machine adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely.



This machine have three types operation types:

20mm Tube 3" Cold Pipe Beveling Machine 0











Technical Parameters:

  Pneumatic(NISP),Hydraulic(NISH),Electric(NISE)
Facing diameter 80-240mm
Power option Electric /Pneumatic/ Hydraulic
Thickness Bellow 20mm






Note:Non-Standard machine are available according to customer’s requirement.











 Process surpface Show:



20mm Tube 3" Cold Pipe Beveling Machine 1





Machine Features:

  • Features:

  • On-site cold Beveling improves safety
  • Easy set-up & Operation
  • Self-Centering
  • Can be positioned in any direction
  • Feed ratchet spanner makes tool feed / back easily
  • Light weight and compact design





Typical applications:



Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair

• Piping system

• Heat exchanger

• Vessel

• Flange faces on piping systems

• Pump housing

• Weld preps

• Tube sheet

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal



Flange facing machine parameter:

Working diameter 80-240mm
Thickness Bellow 20mm
Motor power Pneumatic
Tool degree 0,30,37.5,15degree and so on
Speed 16r/min





Main advantages:



• Exceedingly versatile

• Highly portable

• Latest linear technology

• High efficiency

• Low noise level 2.0hp drive

• Storage/shipping box

• CE certificate

Pipe beveling machine

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe.

A draw nut is tightened,

which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,

self centered and squared to the bore. As the tool bit is fed into the material from the end,

a bevel is produced which conforms to the angle predetermined by the angle ground into the bit.

Bits are available for practically any material or beveling angle required,

and bits can be custom made for any form tooling operation.



 Features:

  • On-site cold Beveling improves safety
  • Easy set-up & Operation
  • Self-Centering
  • Can be positioned in any direction
  • Feed ratchet spanner makes tool feed / back easily
  • Light weight and compact design
 Spcification:

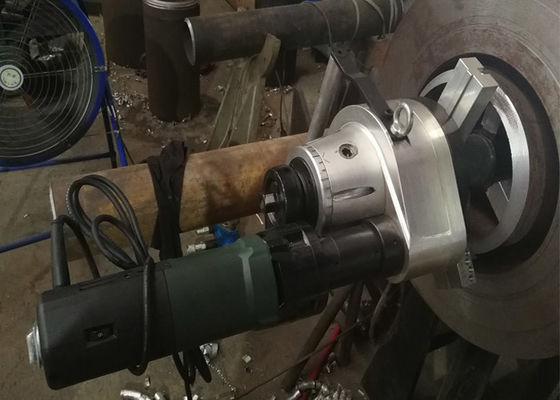

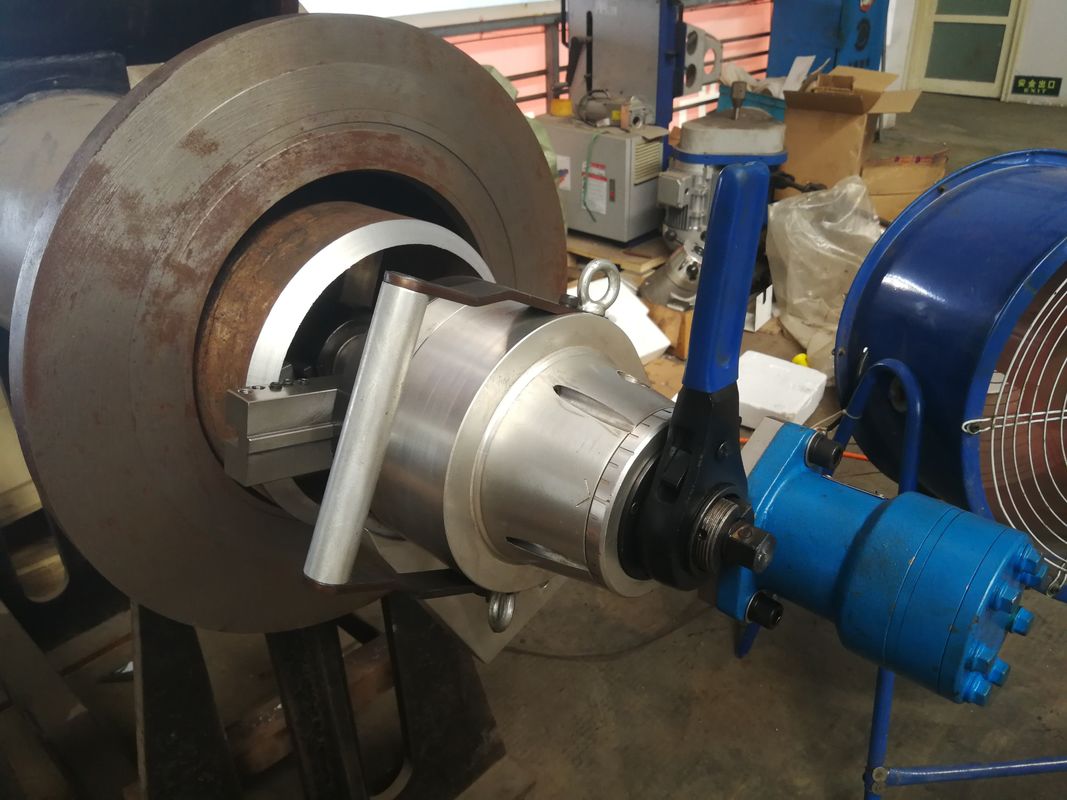

Machine on site:



20mm Tube 3" Cold Pipe Beveling Machine 2









Machine advantages:



  • Quick and Easy Setup & Removal
  • Lightweight
  • Safe and Quiet Operation
  • Simplified Operation
  • Cuts Chamfers and Grooves



NISP-252-1 Machine can be used in horizontally,verically or overhead planes.





20mm Tube 3" Cold Pipe Beveling Machine 3



Packing pictures:





20mm Tube 3" Cold Pipe Beveling Machine 4





package :

size :

79x 38 x 35cm -

Weight:

45kgs wooden box in total (wooden box)

Easy to carry and reliable quality on site shipping.
