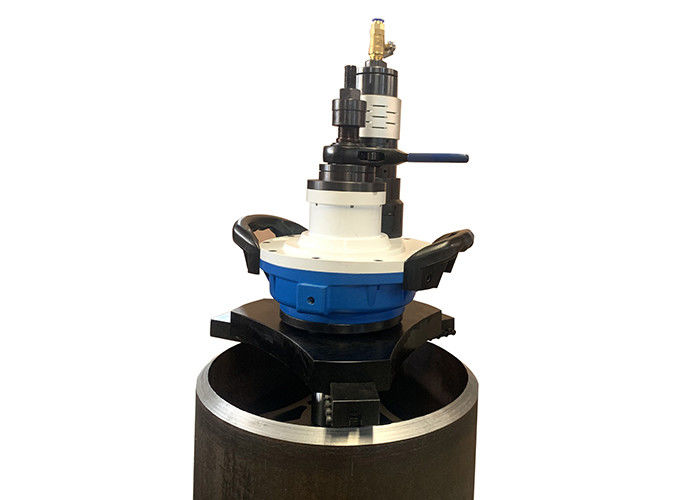

55r/Min Rotation Chamfering Pneumatic Pipe Beveler

55r/Min Rotation Chamfering Pneumatic Pipe Beveler
55r/Min Rotation Chamfering Pneumatic Pipe Beveler
video play

Large Image :  55r/Min Rotation Chamfering Pneumatic Pipe Beveler

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-159
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood
Delivery Time: within 3days
Payment Terms: T/T
Supply Ability: 180 set / month
Detailed Product Description
Model: ISP Working Range (I.D): 18-840mm
Wall Thickness: Less Than 75mm Rotation Speed: 9-55r/min
High Light:

Chamfering Pneumatic Pipe Beveler

,

55r/Min Pneumatic Pipe Beveler

,

840mm Pneumatic Pipe Beveler



Pneumatic pipe tube chamfering manual operation beveling machine

Performance of products
This series of machine is high cost efficiecny machine. internal mounted , small raduis, suitable for any working condition.The machine compact design , light weight , easy to carry to anywhere, suitable for repair in the field. Also machine can make stationary table for factory working line processing. The machine have competitive price. good price and good quality. this series machine are the most popular machine.The machine can outside bevel , inside bevel , tube facing , counter boring etc function.

55r/Min Rotation Chamfering Pneumatic Pipe Beveler 0
Function of products

  • Compact design , Light Weight
  • Inside Mounted , Small Raduis
  • Manual Operation , High efficiency
  • Bevel angle can be adjustable
  • Working Range (18-840mm)
  • Wall thickness less than 75mm
  • Outside Bevel , Inside bevel , Tube facing , counter boring
  • Bevel Type: V , U , X etc
  • Pipe material: carbon steel , stainless steel , aluminum alloy etc


Specification of Products


Model Working Range (I.D) Wall thickness Rotation Speed
ISE-30 18-28mm less than 15mm 50r/min
ISE-80 28-76mm less than 15mm 55r/min
ISE-120 40-120mm less than 15mm 30r/min
ISE-159 65-159mm less than 20mm 35r/min
ISE-252-1 80-240mm less than 20mm 16r/min
ISE-352-1 150-330mm less than 20mm 14r/min
ISE-426-1 250-426mm less than 20mm 12r/min
ISE-630-1 300-600mm less than 20mm 10r/min
ISE-850-1 600-840mm less than 20mm 9r/min
ISE-252-2 80-240mm less than 75mm 16r/min
ISE-352-2 150-330mm less than 75mm 14r/min
ISE-426-2 250-426mm less than 75mm 12r/min
ISE-630-2 300-600mm less than 75mm 10r/min
ISE-850-2 600-840mm less than 75mm 9r/min





































Bevel Type

Outside bevel , Inside bevel , tube facing , counter boring etc

"V" Tybe ; "U" Tybe ; "X" Tybe etc

55r/Min Rotation Chamfering Pneumatic Pipe Beveler 1
55r/Min Rotation Chamfering Pneumatic Pipe Beveler 255r/Min Rotation Chamfering Pneumatic Pipe Beveler 3

Order Guide

  • pipe size (I.D)
  • pipe thickness
  • pipe material
  • Machine Driven : Electric ; Pneumatic
