Product Details:
Payment & Shipping Terms:
|
| Motor Power: | 1100W | Bevel Angle: | 30 To 60 Degree |
|---|---|---|---|
| Bevel Width: | 1-15mm | Rotation Speed: | 2870r/min |
| High Light: | Manual Operation Plate Beveling Machine,Deburring Removal Plate Beveling Machine,2870r/Min |
||
Manual Operation carbon steel plate beveling machine remove deburring machine
Performance of products

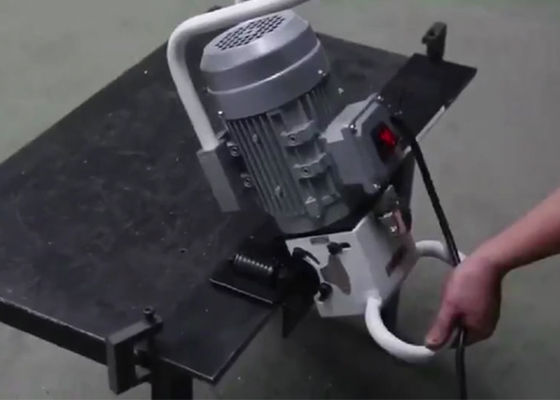

PBM-15 machine is manual operation machine , compact design , light weight , easy to carry out. A quick and easy edge bevelling solution designed for edge preparation of steel plate. The PBM-15 beveling machine can provide stable output power. The advantage of machine is safety in use, high efficiency in milling process. The machine is suitable for plate beveling process before welding.
Function of products
1. The beveling surface of plate is smooth and flat, and no oxidation layer in it, easy for welding
2. Meet the pre-welding requirement for K, V, X and Y-type welded joint
3. Suitable to use on the steel plate, cast iron and hard plastics, and it also can be used on the chrome steel and other high-strengh materials.
| PBM-15 Specification | |
| Maximum Milling Width | 1~15mm(Adjustable) |
| Milling Angle | 30°~60°(Adjustable) |
| Weight | 18kg |
| Voltage | 380V / 220V |
| Frequency | 50HZ |
| Power | 1.1KW |
| Speed | 2870r/min |
Order Guide
Please provide more details about your plate :
We will recommend suitable machine to you!
