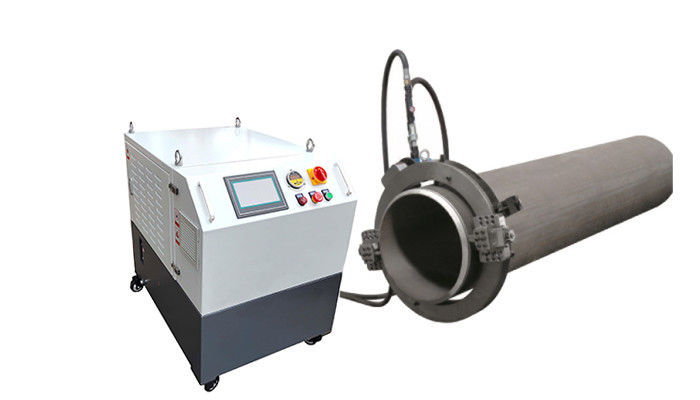

Horizontal Are Split Frame CS Pipe Cutting Beveling Machine

Horizontal Are Split Frame CS Pipe Cutting Beveling Machine
Horizontal Are Split Frame CS Pipe Cutting Beveling Machine
video play

Large Image :  Horizontal Are Split Frame CS Pipe Cutting Beveling Machine

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001
Model Number: OCP-1430
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: Plywood Box
Delivery Time: with1- 7 days
Payment Terms: T/T, L/C
Supply Ability: 10sets/day
Detailed Product Description
Material: Brass / Copper, Stainless Steel, Carbon Steel, Aluminium Alloy, Pipe OD:: 1230-1430mm(18-24inch)
Mounting Method:: Split OD Mount Usage:: Pipe Cutting And Beveling
Pipe Thickness:: ≤30mm Driven:: Pneumatic Motor
Body:: Aluminum,CS Power: 220V/380V/50HZ
High Light:

Horizontal Pipe Cutting Beveling Machine

,

Pneumatic Pipe Cutting Beveling Machine

,

Are Split Cutting Beveling Machine

Automatic Portable Horizontal Split frame CS Aluminum Body Pipe edge pneumatic electriccutter steel beveling cutting mac



Production Description



The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.



Features:

  • Cold Cutting and Beveling improves safety
  • Cutting and Beveling simultaneous
  • Split Frame: easy mounted on pipeline
  • Tools feed automatically
  • Fast, Precision, On-site Beveling
  • Minimal Axial and Radial clearance
  • Light weight and compact design
  • Easy set-up & Operation





  • Spcification:
  •
  •
    Model
    Working Range (ID-OD) Wall Thickness Rotation Speed
    OCE-89 Φ25-89 3/4''-3'' ≤35 42r/min
    OCE-159 Φ50-159 2''-5'' ≤35 20r/min
    OCE-168 Φ50-168 2''-6'' ≤35 18r/min
    OCE-230 Φ80-230 3''-8'' ≤35 15r/min
    OCE-275 Φ125-275 5''-10'' ≤35 14r/min
    OCE-305 Φ150-305 6''-10'' ≤35 13r/min
    OCE-325 Φ168-325 6''-12'' ≤35 13r/min
    OCE-377 Φ219-377 8''-14'' ≤35 12r/min
    OCE-426 Φ273-426 10''-16'' ≤35 12r/min
    OCE-457 Φ300-457 12''-18'' ≤35 12r/min
    OCE-508 Φ355-508 14''-20'' ≤35 12r/min
    OCE-560 Φ400-506 16''-22'' ≤35 12r/min
    OCE-610 Φ457-610 18''-24'' ≤35 11r/min
    OCE-630 Φ480-630 20''-24'' ≤35 11r/min
    OCE-660 Φ508-660 20''-26'' ≤35 11r/min
    OCE-715 Φ560-715 22''-28'' ≤35 11r/min
    OCE-762 Φ600-762 24''-30'' ≤35 11r/min
    OCE-830 Φ660-813 26''-32'' ≤35 10r/min
    OCE-914 Φ762-914 30''-36'' ≤35 10r/min
    OCE-1066 Φ914-1066 36''-42'' ≤35 10r/min
    OCE-1230 Φ1066-1230 42''-48'' ≤35 10r/min





    Machine detail parts pictures:

    Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 0

    Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 1Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 2



    Tool spares:



    Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 3Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 4
  •
    Machine on site:
  • Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 5
  • Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 6
  •

    Order Guide
  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important).

  •

  • Packing box:

  •

    Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 7

  • Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 8

  • Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 9Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 10Horizontal Are Split Frame CS Pipe Cutting Beveling Machine 11
