Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
Rated Power:: | 1620W | Voltage: | 380V/220V,50HZ |
---|---|---|---|
Milling Angle:: | 30°-60° | Material: | METAL |
Bevel Width:: | 1-15mm | Speed:: | 2870r/min |
Gross Weight:: | 18Kgs | Total Power:: | 1.1KW |
Dimension(L*W*H):: | 665*605*845mm | ||
High Light: | 2870r/Min Plate Edge Milling Machine,Anti Corrosion Plate Milling Machine,Deburring Plate Edge Milling Machine |

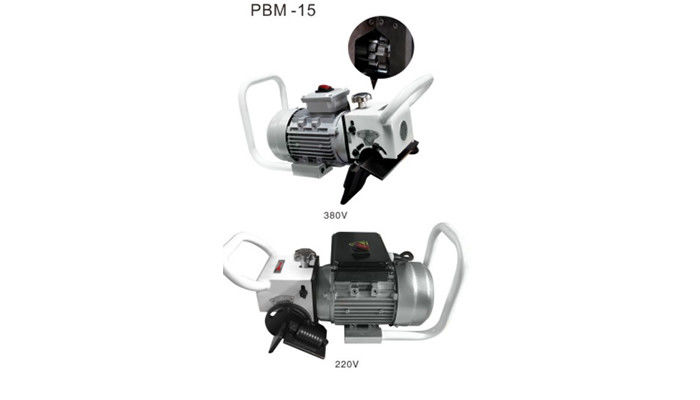

PBM-15 Small Plate edge milling machine wellnit for sale
The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.
A quick and easy edge bevelling solution designed for edge preparation of steel plate.
The PBM-15 beveling machine can provide stable output power. The advantage of machine is light in
weight(compare with similar product), safety in use, easy operation and high efficiency in milling process. The machine is suitable for plate beveling process before welding.
The PBM-15 milling machine:
1. Machine parts:Anti-corrosion,hardening and tempering,abrasion treatment;
2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;
3. More safe: The Control box is separate from the Electrical box, high voltage power supply do not contact with operation interface.
Specification:
Power Supply | AC 380V 50HZ | Bevel Width | 1-15mm |
Total Power | 1100W | Cutter Qty | 5Pcs |
Clamp Thickness | no limited | Rotation | 2870r/min |
Operation TYPE | Electric | Bevel Angle | 30-60deg |
Max bevel width | 15mm | Net Weight | 18Kgs |
Porcess Material |
CS,SS,Aluminum, compound and ohters |
Gross Weight | 22Kgs |
Feature:
1. The beveling surface of plate is smooth and flat, and no oxidation layer in it, easy for welding.
2. Meet the pre-welding requirement for K, V, X and Y-type welded joint.
3. Suitable to use on the steel plate, cast iron and hard plastics, and it also can be used on the chrome
steel and other high-strengh materials.
Detail image:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. Or 30 days , it's depand to quantity.
Q: What is your terms of payment ?
A:
1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;
2) If all the cost is less than USD $ 10000, T/T 100% required in advance.
Order Guide
Before you place order to us, please let us know the following information:
*Choose the right Model
*Confirm your electric power supply ( Voltage, frequency and phase)
*Confirm the beveling angel required
*Confirm the welding joint required (U, V, Double V or Compound preparation)
*Advise your pipe material ( Carbon steel, stainless steel or others)
*Other special demands about machine
*The spare parts needed
*If the pipe wall thickness more than 30mm, inform us in advance (Important)
Single item |
80X69X114 cm |
25.0 KG |
Wooden Case |
