Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220-240V | Power: | 2450 Watts |
|---|---|---|---|
| Speed: | 7500 Rpm | Warranty: | 1 Year |
| Series: | Electric Beveling Machine | Number Of Blades: | 4/5 Pieces |
| High Light: | Flat Electric Beveling Machine,7500rpm Electric Beveling Machine,5 Blades Electric Beveling Machine |
||

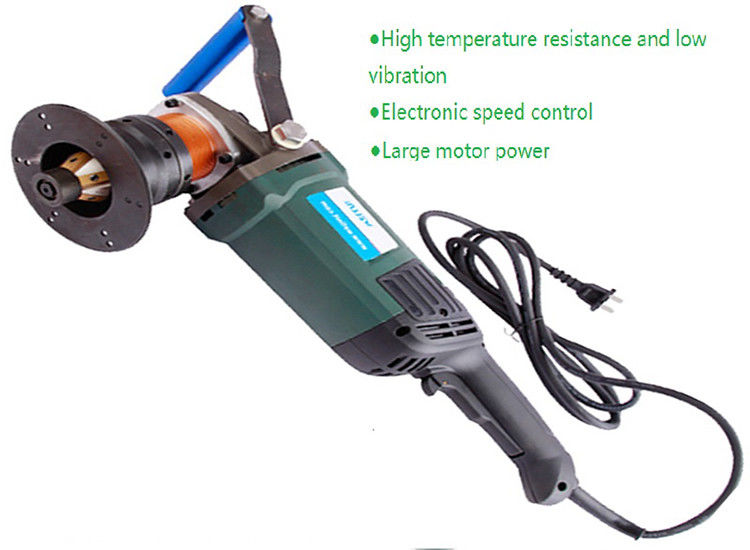

Multifunctional electric beveling machine portable handheld PB15 flat beveling machine beveling machine
product description
This is a portable beveling machine that can easily chamfer the steel plate. Not only that, it can also complete the processing of curved operations. For example, the curved steel plate and the circular pipe mouth, the effect is outstanding!
PB-15 is a manually operated electric tool. The machine is suitable for processing the bevel before welding (it can be processed into K, V, X, Y bevel). It can not only perform bevel processing on plates and metal materials To remove burrs, and bevel the inner hole of the pipe. Its versatility and flexibility can greatly improve work efficiency and make it an attractive device. The machine has a very compact structure and can be operated in places where the environment is complex and difficult to process.
PB-15 technical parameters
●Voltage: 220-240V
●Power: 2450W
●Rotating speed: 7500 rpm (adjustable speed)
●Bevel angle: standard 30° (optional 37.5°, 45°)
●Slope width: 1-15mm. (Take Q235 material as an example)
●Safety: soft start
●Weight: 8.5Kg
Product accessories and knives
Beveling machine accessories
Guide wheel of beveling machine
Tool for beveling machine
Various details of the product
■ Wild carbide 4-blade blade
Can be used multiple times and can process a variety of materials
■Auxiliary handle makes operation more convenient, humanized design
■Refer to the value of the scale table to accurately adjust the angle
■Cutter head: factory direct sales, high quality, rigorous workmanship, leading the industry
