Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Model: | ISH-325 | Processing Range: | 80-305mm |
|---|---|---|---|
| Cutter Speed: | 16r/min | Tool Material: | M2; M42 |
| Motor Power:: | 1.5-2.0KW | Drive Mode: | Electric, Pneumatic |
| High Light: | 16r/min Cutting Pipe Beveling Machine,Chamfering Cutting Pipe Beveling Machine,2.0KW Cutting Pipe Beveling Machine |
||
Product performance
The internal expansion type beveling machine adopts cold working method, no sparks, and will not affect the material of the pipe;
Self-centering, easy to install, fast and high efficiency;
It can process pipes made of carbon steel, stainless steel, alloy steel and other metal materials;
According to different pipes, the motor speed can be adjusted, the knife can be fed manually, and the operation is convenient.
Product technical parameters
| specification | Processing tube inner diameter | Cutting bevel wall thickness | Cutter speed |
| ISE-30 | 18-28mm | ≤15 | 50r/min |
| ISE-80 | 28-76mm | ≤15 | 55r/min |
| ISE-120 new | 40-120mm | ≤15 | 30r/min |
| ISE-159 | 65-159mm | ≤20 | 35r/min |
| ISE-252-1 | 80-240mm | ≤20 | 16r/min |
| ISE-252T new | 65-245mm | ≤20 | 16r/min |
| ISE-352-1 | 150-330mm | ≤20 | 14r/min |
| ISH-325 new | 80-305mm | ≤20 | 16r/min |
| ISE-426-1 | 250-426mm | ≤20 | 12r/min |
| ISE-630-1 | 300-600mm | ≤20 | 10r/min |
| ISE-850-1 | 600-820mm | ≤20 | 9r/min |

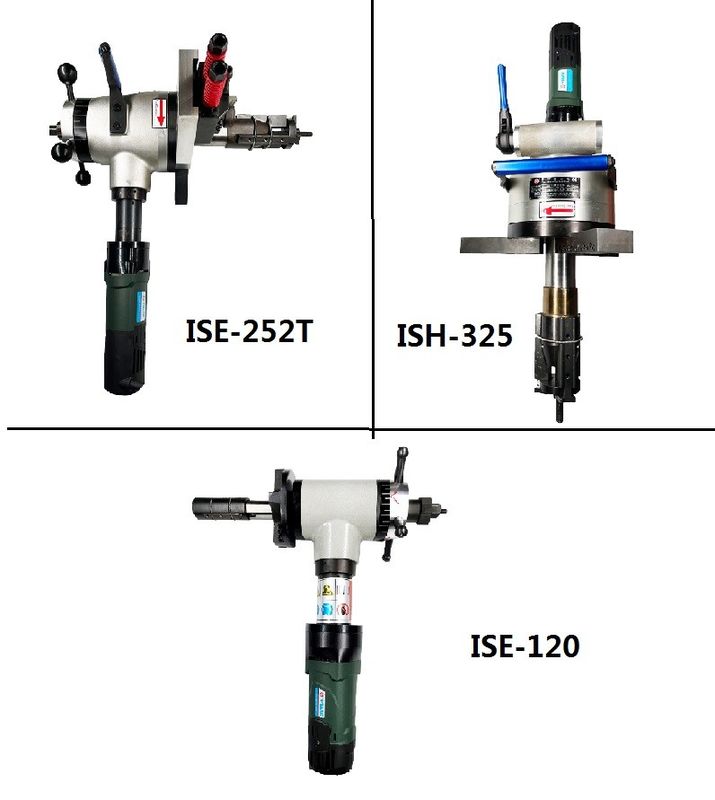

Product Image

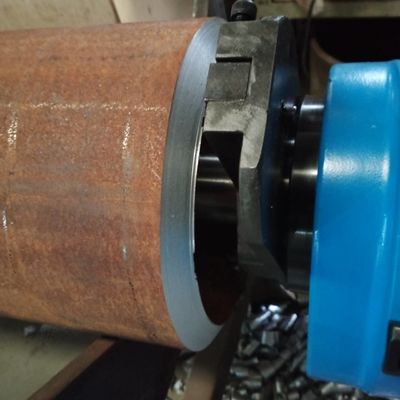

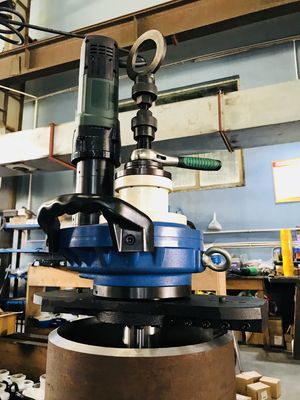

Engineering case
Accessories diagram

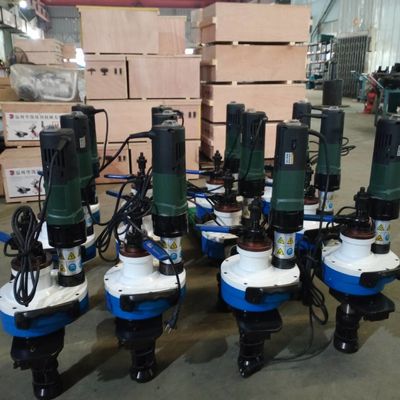

Packing box
