ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min

ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min
video play

Large Image :  ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISE-159
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: with 7 days
Payment Terms: T/T
Supply Ability: 50sets/mounth
Contact Now
Detailed Product Description
Capacity ID: 40mm-120mm Wall Thickness: Less Than 15mm
Rotation Speed: 30r/min Motor Power: 2kw
Warranty: 1 Year
High Light:

30r/min Pipe Cutting And Beveling Machine

,

Internal Expansion Pipe Cutting Beveling Machine

,

ID 40mm Pipe Cutting Beveling Machine

Hand-held  beveling machine, easy to carry, specially for beveling.



Products Features

  • This series is ID-mounted pipe beveling machine with light weight,compact design .
  • There are 14 art kinds for option.
  • Easy and quickly set-up self centered and squared to the bore.
  • The tool not only can process carbon steel ,stainless steel and alloy pipe with U,V welding seam but also can process convex flange welded.
  • Fast precision ,on-site beveling,the bevel angle by your required.
  • This series available for electric and pneumatic driven



technical parameter



Model Spec Machining inner diameter Wall thickness Rotation Speed

Electric

ISE



Pneumatic

ISP





Metabo

ISM

 30 φ18-28 ≤15mm 50r/min
80 φ28-76 ≤15mm 55r/min
120 φ40-120 ≤15mm 30r/min
159 φ65-159 ≤20mm 35r/min
252-1 φ80-240 ≤20mm 16r/min
352-1 φ150-330 ≤20mm 14r/min
426-1 φ250-426 ≤20mm 12r/min
630-1 φ300-600 ≤20mm 10r/min
850-1 φ600-820 ≤20mm 9r/min
  ISE-252T φ65-245 ≤20mm 16r/min
ISH-325 φ80-305 ≤20mm 16r/min





Machine Specification:

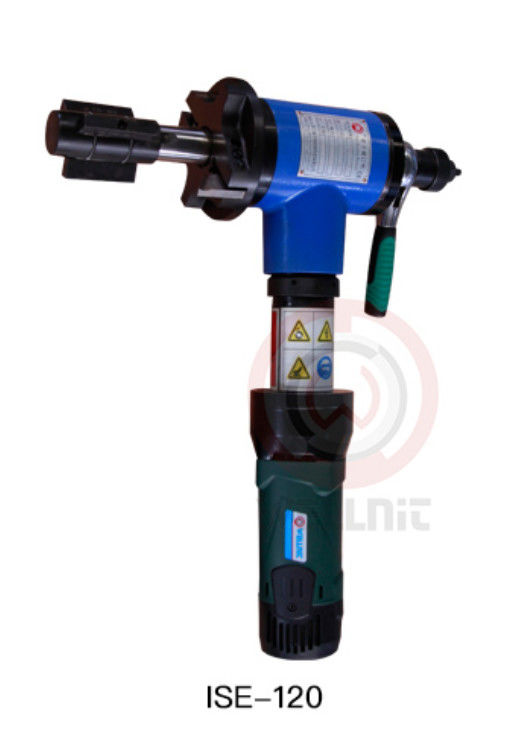

Model ISE-120
Voltage 220V
Frequency 50/60 Hz
Motor Brand Electric Motor
Power 1500W
Working Range(I.D) 40-120mm
Wall Thickness

Greater than 2mm

Less than 15mm
Rotation Speed 30r/min
Driven Electric



Machine Packing List ISE-120

Name Model Unit Qty
Machine ISE-120 Set 1
Expansion block NO.1-8 Set 8
Facing Tool 0° Pcs 1
Outside Beveling Tool 30° Pcs 1
Outside Beveling Tool 37.5° Pcs 1
Allen wrench / Pcs 1
Hex wrench / Pcs 1
Instruction manual 　 Pcs 1





Machine Feature:

  • Cold Beveling ,won’t influence the material of pipe.
  • Inside Mounted , Small working radius.
  • Compact design , Light weight , Easy to carry.
  • Easy and quickly set-up self centered and squared to the bore.
  • Bevel Type: “V” ;“U” ; “J” ; compound bevel etc.
  • The tool not only can process carbon steel,stainless steel and alloy etc.
  • Fast precision , on-site beveling , the bevel angle by your required.

Bevel Type:

ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min 0

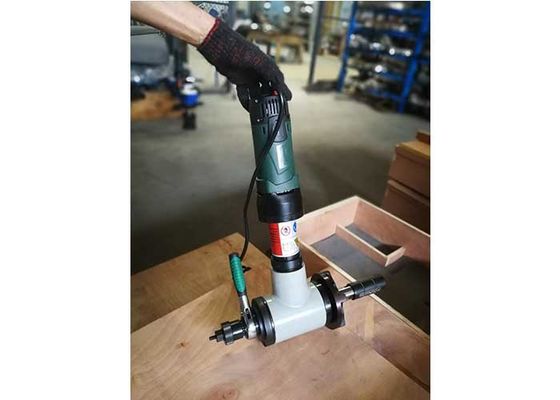

products show

ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min 1



ID 40mm Pipe Cutting And Beveling Machine Internal Expansion 30r/Min 2
