Product Details:
Payment & Shipping Terms:
|
| Facing Range: | 50-610mm | Tool Feed Stroke: | 50mm |
|---|---|---|---|
| Tool Holder Swivel Angle: | +-30° | Rotation Speed: | 0-42 R/min |
| Air Pressure: | 0.8-1.0Mpa | Air Consumption: | 2000L/min |
| Servo Motor: | Electric/Pneumatic | Frequency: | 50Hz |
| High Light: | 42r/Min Rotation Flange Facing Machine,Flange Facing Machine 2000L/Min,50mm Stroke Flange Facing Machine |
||
MAIN P ER FORMANCE

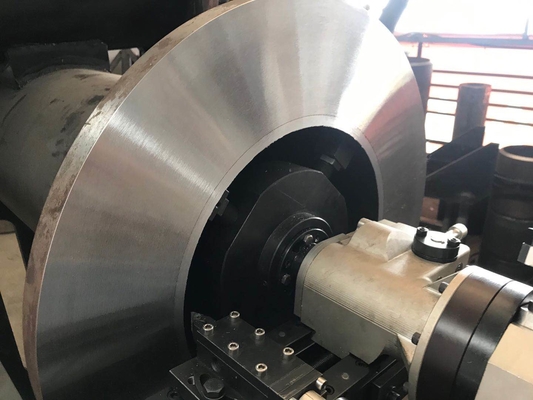

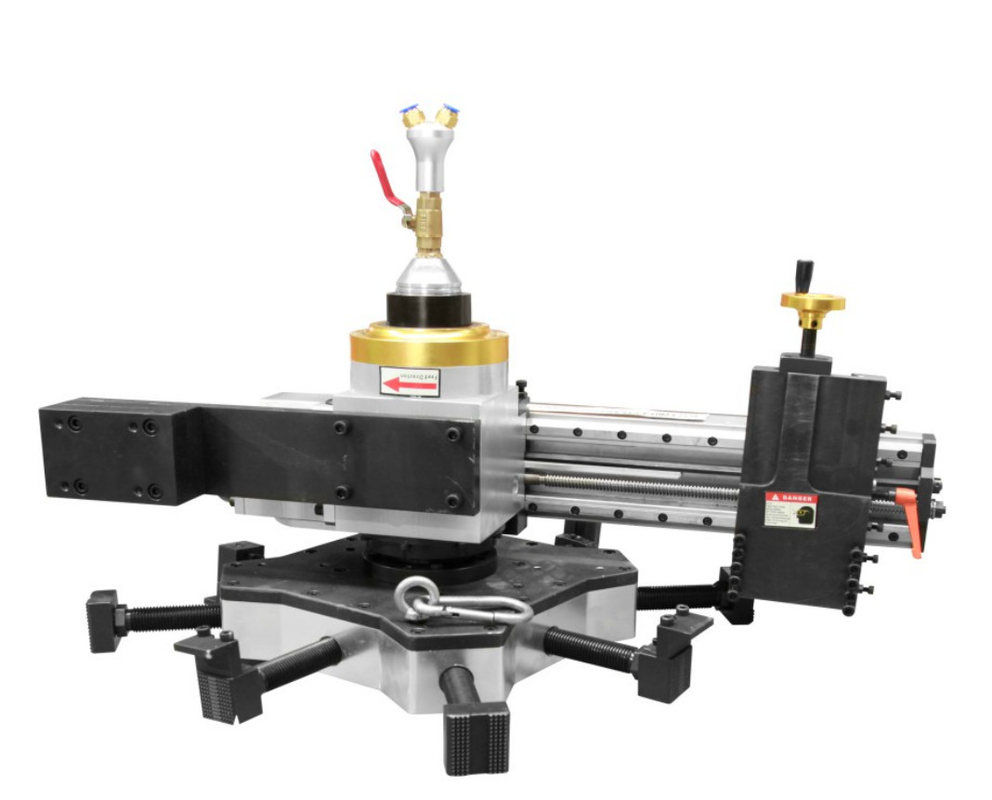

Flange Facer Machine are Multi-Function series machine. The Product make up with three parts,have four clamp support,Iternal mounted,small working radius.The novel tool holder design can be rotated 360 degrees.high efficiency.suitable for all types of flange facing,seal groove machining,weld prep and counter boring.It special for pipe ,valve,pump flanges etc.
Feature
1. Compact structure,Light weight,easy to carry out
2. Have scale of feed handwheel,improvw feed accuracy
3. Automatic feeding in the axial direction and the radial direction,high efficiency
4. Horizontal,vertial ,inverted,tilt ect,any direction both can processed.
5. Can process flat face,water linr,Continuous groove,RTJ groove rtc
6. Driven:Pneumatic,Hydraulic,CNC
