| Plate Thickness: | No Limited | Bevel Angle: | 30 - 60 Degree |
|---|---|---|---|
| Motor Power: | 1100W | Bevel Width: | 1-15mm (Q235) |
| High Light: | Manual Steel Pipe Cutting Beveling Machine,Q235 Pipe Cutting Beveling Machine,Pipe Cutting Beveling Machine 1100W |
||

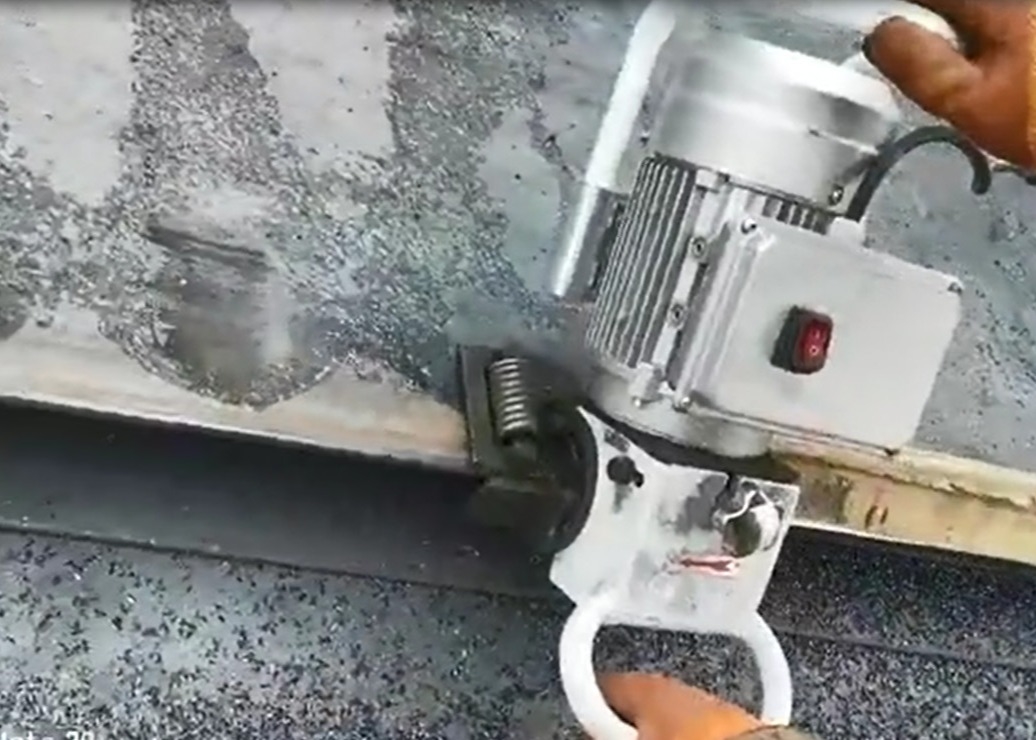

manual steel plate beveling machine straight sheet beveler
machine introduction
This series machine special design for straight steel plate,before weld processing (bevel , burring ). complete cold processing, can not effect steel plate material . after bevel , the bevel surface is smoothly ,can meet K , V , X,Y bevel type, even no need pickling , you can do weld directly after bevel.high efficiency.If you steel plate quantity not many , you must choose this model.the machine cost effective, low price, high efficiecny .very popular.
machine specification
| Model | PBM-15 |
| voltage | 1PH 220V / 3PH 380V |
| Frequency | 50Hz |
| Motor Power | 1100W |
| Bevel Width | 1-15mm (Q235) |
| Bevel Angle | 30-60 Degree |
| Net Weight | 18KG |
| Gross Weight | 28KG |
Machine Tools
machine equip with 12pcs blades tool, the blades is Cemented carbide material , each blades have four use side , when one side wear, you can choose another one to use , low loss.
