Product Details:
Payment & Shipping Terms:
|
| Motor: | German Metabo Motor | Power: | 1300W |
|---|---|---|---|
| Function: | Cutter , Beveler , Cut & Bevel | Body: | Aluminum Alloy |
| High Light: | Aluminum Clamshell Pipe Cutting Machine,Clamshell Pipe Cutting Machine 1300W,120r/Min Clamshell Pipe Cutting Machine |
||

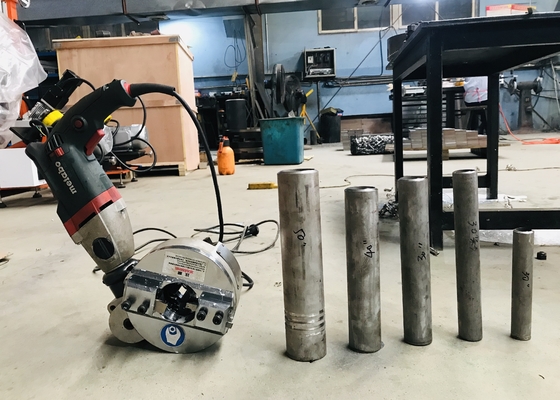

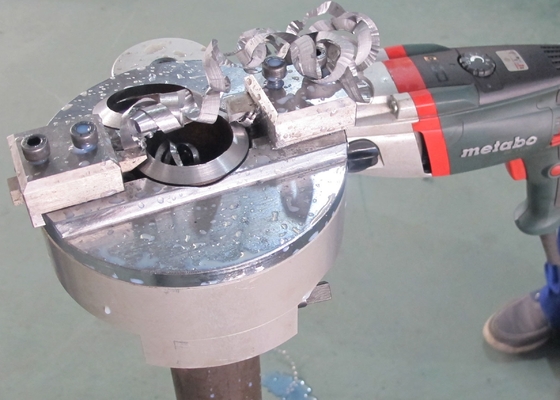

Aluminum alloy body Metabo Motor Pipe cutting and beveling machine Cam Type tube cutter SCB
machine introduce
this series machine are complete aluminum alloy body, light weight , machine equip with german brand Metabo motor , have overload protect , the motor rotation speed can be adjustable ( from 1 grade to 6 grade ) . machine desgin self centering stucture , install very easy , after machine put on the pipe , adjust all expansion block by one spare parts , very convimient. machine have cutting tool holder and beveling tool holder , can double cutting , double beveling , cutting and beveling at same time.high efficiecny.
machine specification
| Model | Working Range (Outside diamter) | Wall thickness | Rotation Speed | Net Weight |
| SCB-63 | 14-63mm | less than 12mm | 30-120r/min | 13KG |
| SCB-114 | 63-114mm | less than 12mm | 30-120r/min | 16KG |
machine function
Machine driven
machine have electric and pneumatic two driven can be choose. Electric very convinient , pneumatic can explosion proof.
