Product Details:
Payment & Shipping Terms:
|
| Facing Range: | 160-1000mm | Machine Driven: | Pneumatic / Servo Motor |
|---|---|---|---|
| Function: | Facing , Seal Groove , RTJ Etc | Mounted Way: | Inside Mounted |
| Mounting Range: | 158-820mm | ||
| High Light: | ID Mount Flange Facing Equipment,Automatic Flange Resurfacing Machine,Wind Power Flange Machining Tool |
||
Valve Flange Portable Miller water line process flange facer
machine introduce

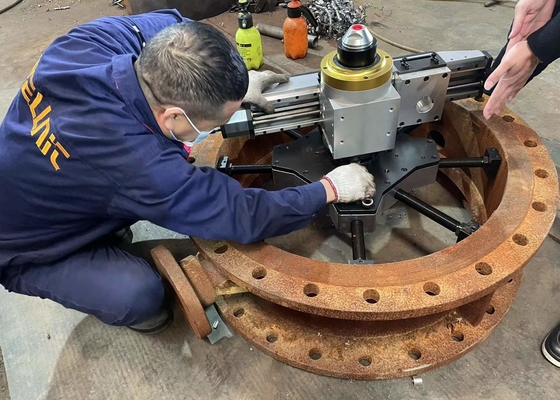

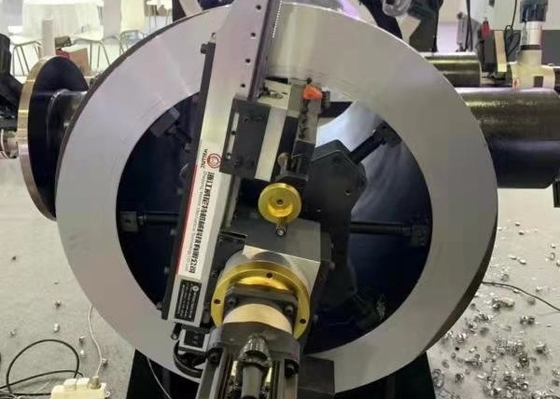

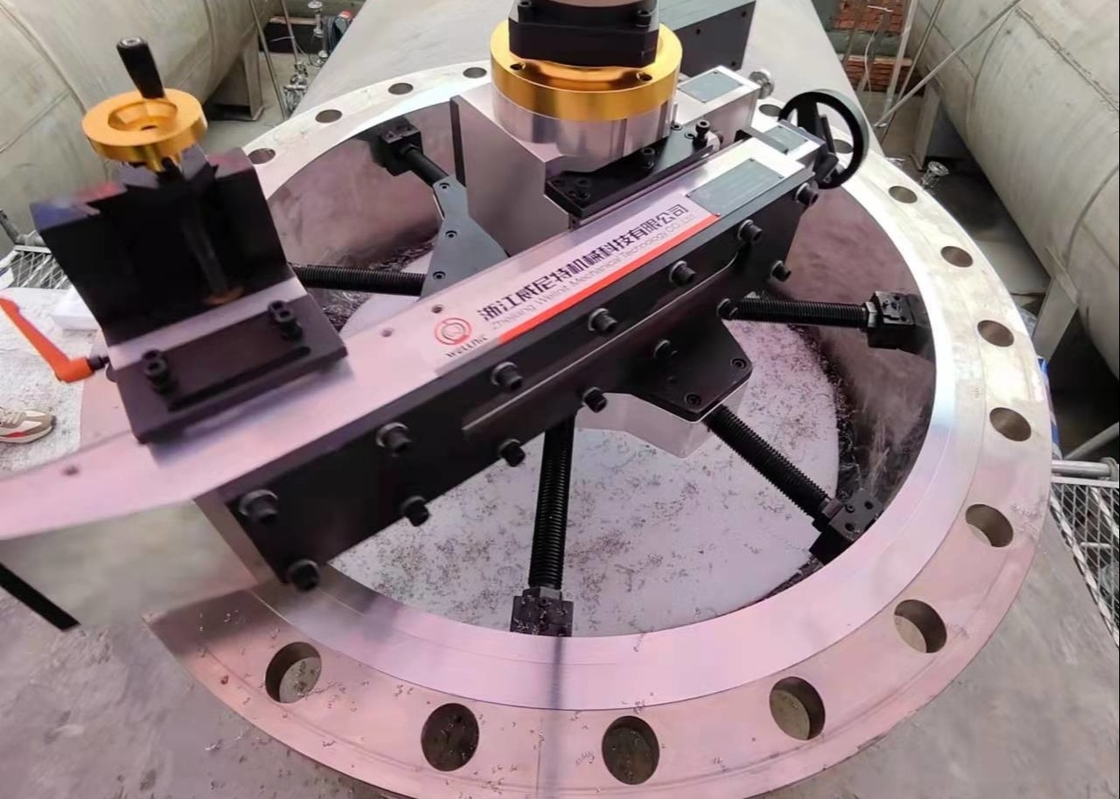

Flange Facer ID Mount Flange Facing Machine For Wind Power Plant Face Machining is an internally mounted flange facing machine for all types of flange facings, seal groove machining, weld preparation and counter boring. The flange end face processing machine is a portable milling machine type machine with high efficiency and fast speed. It can process flange surfaces, water lines, sealing groove processing, sealing surface processing, etc.
The installation direction of the machine is not fixed, it can be horizontal, vertical, upside down, etc. The drive mode can also be selected, with pneumatic and servo motor drive. Pneumatics need an air compressor to provide air source.The machine is installed internally, with a small working radius, suitable for any narrow space.
Machine function:
Machine specification
| Model | Facing Range (O.D) | Mounting Range (I.D) | Tool Feed Stroke | Tool holder swivel angle | Rotation Speed |
| WFS-610 | 50-610mm | 50-508mm | 50mm | +-30° | 0-42r/min |
| WFS-1000 | 160-1000mm | 158-820mm | 102mm | +-30° | 0-33r/min |
| WFS-1650 | 500-1650mm | 500-1500mm | 102mm | +-30° | 0-22r/min |
| WFS-2000 | 690-2200mm | 690-2000mm | 102mm | +-360° | 0-20r/min |
| WFS-3000 | 1150-3000mm | 1120-2800mm | 102mm | +-360° | 3-12r/min |
