ID Mount Portable Internal Flange Facing Machine For Pipe Repair

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

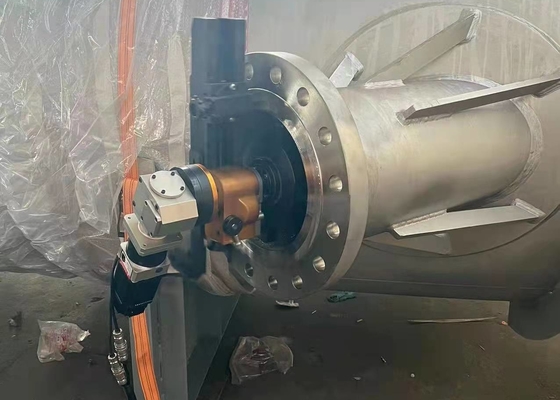

ID Mount Portable Internal Flange Facing Machine For Pipe Repair

ID Mount Portable Internal Flange Facing Machine For Pipe Repair
ID Mount Portable Internal Flange Facing Machine For Pipe Repair
video play

Large Image :  ID Mount Portable Internal Flange Facing Machine For Pipe Repair

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: WFS / WFP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12000
Packaging Details: Aluminum Alloy Box + Plywood box
Delivery Time: within 7days
Payment Terms: T/T,
Supply Ability: 1 sets / week
Detailed Product Description
Facing Range: 50-3000mm Machine Driven: Pneumatic / Servo Motor
Function: Flat Facing , Seal Groove , RTJ Etc Mounted Way: Inside Mounted
Mounting Range: 50-2800mm
High Light:

Portable Flange Resurfacing Machine

,

ID Mount Flange Facer

,

Pipe Repair Flange Facing Equipment

ID Mount Portable Flange Facer Internal Flange Facing Machine for pipe flange repair





machine function

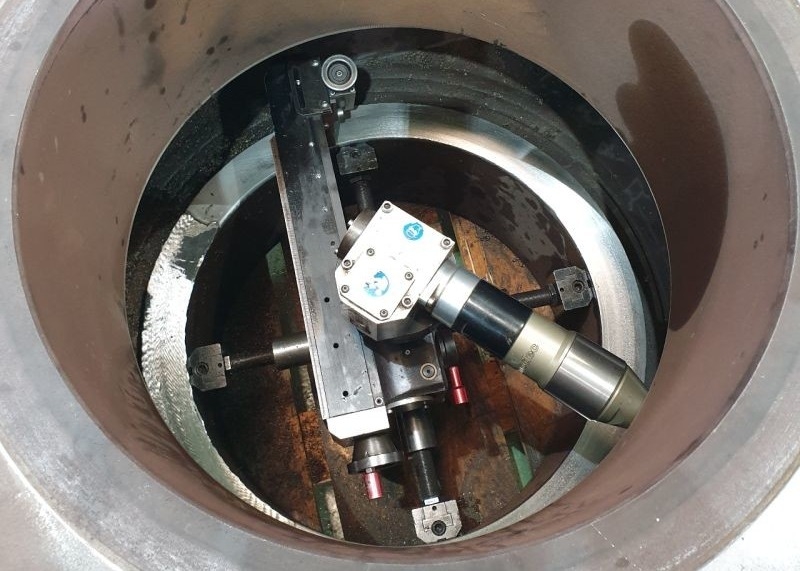

An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld preparation and counter boring.



ID Mount Portable Internal Flange Facing Machine For Pipe Repair 0
  1. Lightweight, precision construction to optimise on-site performance
  2. Modular components make setup quick and easy
  3. Latest linear technology–delivering a robust, reliable operation
  4. Three speed continuous feed gearbox, for gramophone finish
  5. Quick set adjustable clamping jaws, minimising set up time

Machine specification



Model Facing Range (O.D) Mounting Range (I.D) Tool Feed Stroke Tool holder swivel angle Rotation Speed
WFS-610 50-610mm 50-508mm 50mm +-30° 0-42r/min
WFS-1000 160-1000mm 158-820mm 102mm +-30° 0-33r/min
WFS-1650 500-1650mm 500-1500mm 102mm +-30° 0-22r/min
WFS-2000 690-2200mm 690-2000mm 102mm +-360° 0-20r/min
WFS-3000 1150-3000mm 1120-2800mm 102mm +-360° 3-12r/min

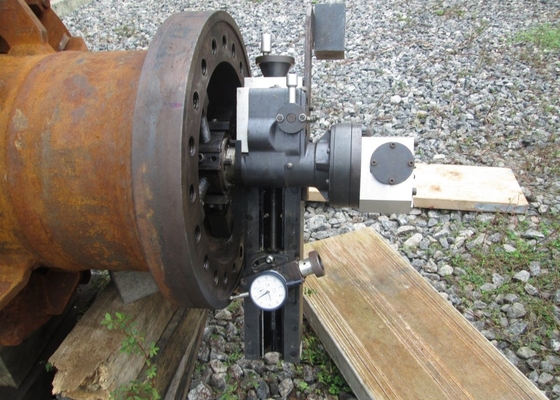

The installation direction of the machine is not fixed, it can be horizontal, vertical, upside down, etc. The drive mode can also be selected, with pneumatic and servo motor drive. Pneumatics need an air compressor to provide air source.The machine is installed internally, with a small working radius, suitable for any narrow space.Flange Facer ID Mount Flange Facing Machine For Wind Power Plant Face Machining is an internally mounted flange facing machine for all types of flange facings, seal groove machining, weld preparation and counter boring. The flange end face processing machine is a portable milling machine type machine with high efficiency and fast speed. It can process flange surfaces, water lines, sealing groove processing, sealing surface processing, etc.



Machine advantage:



  • Compound beveling tool post
  • Angle adjustment tool post
  • Heavy duty processing
  • Compound feed mechanism
  • Serrated spiral finish processing
  • Facing processing
