Product Details:
Payment & Shipping Terms:
|
| Spec: | OCE-377 | Capacity: | 219-377mm |
|---|---|---|---|
| OD (inch): | 8"-14" | Standard: | ≤30 |
| High Light: | OCE-377 Pipe Beveling Torch,Electric Pipe Cutting Beveling Machine,12r/Min Pipe Beveling Equipment |
||

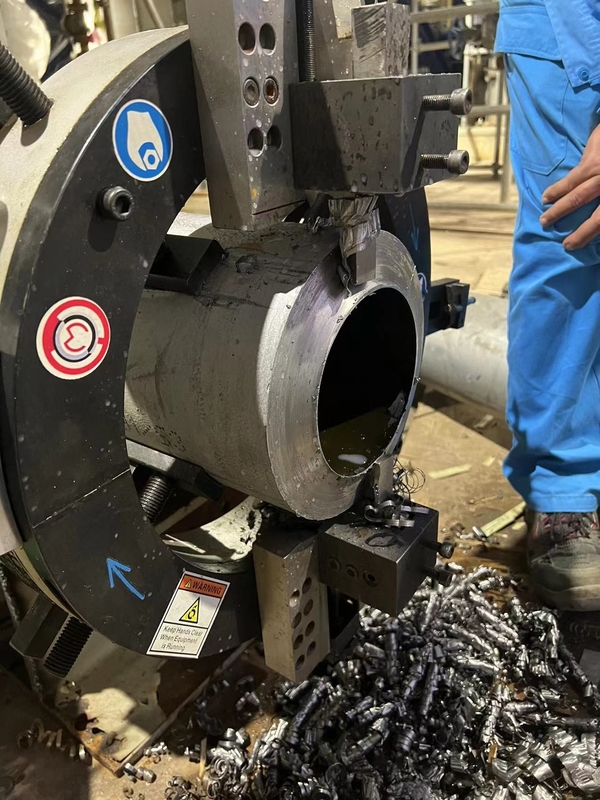

This machine adopts AC 220v high-performance motor as power, the motor frequency is 50HZ, the allowable current is 6A,
and the motor power is 1.5-2KW. This machine is a portable external installation cutting and beveling machine,
which has the characteristics of easy operation and small radial clearance.
| Model | OCE-377 |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Power | 1800W |
| Working Range(O.D) | 8”-14” |
|
Wall Thickness (Standard) |
Greater than 6mm Less than 30mm |
| Rotation Speed | 12r/min |
| Machine Body | Steel |
| Driven | Electric |
| Net Weight | 73KGS |
| Gross Weight | 110KGS |
| Name | Unit | Qty |
| Machine | Set | 1 |
| Cutting Tool | Pcs | 2 |
| Beveling Tool (30degree) | Pcs | 1 |
| Beveling Tool (37.5degree) | Pcs | 1 |
| Allen Wrench | Set | 1 |
| Sprinkling Can | Pcs | 1 |
| Oil Gun | Pcs | 1 |
| Rubber Hammer | Pcs | 1 |
| Square Wrench | Set | 1 |
| AngleRuler | Pcs | 1 |
| Instruction manual | Pcs |
1 |
