Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed

Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed
Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed
video play

Large Image :  Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-10D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1200
Packaging Details: plywood box
Delivery Time: within 7 days
Payment Terms: T/T
Supply Ability: 1 sets / week
Contact Now
Detailed Product Description
High Light:

Acrylic Sheet Plate Beveling Machine

,

50HZ Acrylic Sheet Beveling Machine

,

Automatic Feed Acrylic Sheet Beveling Machine

small Acrylic sheet plate beveling machine automatic feed

Product Description
Main Features:
1. Cold Processed, No spark, Will not affect the material of plate.
2. Automatic feed, High efficiency.
3.Suitable for strip plate and small thin plate.
4.Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
5. Numerical control display screen, Simple operation, Bevel speed can be adjustable, high precision.
6. Equipped with CNC blades, low consumables.
7. Bevel type: V, Y, K, X etc.
8. Can process carbon steel, stainless steel, alloy steel, titanium, composite plate etc.
Specification
Model
PB-10D
Voltage
AC3PH 380V 50HZ
Total power
2000W
Spindle speed
1400r/min
Feed speed
0-1500mm/min
bevel width
1-18mm
single bevel width
1-10mm
bevel angle
30°-60°
Clamp thickness
2-40mm
Plate width
>20mm
Plate length
/
Worktable height
/
N.W
80KGS
Process material
CS,SS,Aluminum,bronze,compound plate
Note:Non-standard machines are aviable according to customer's requirement.

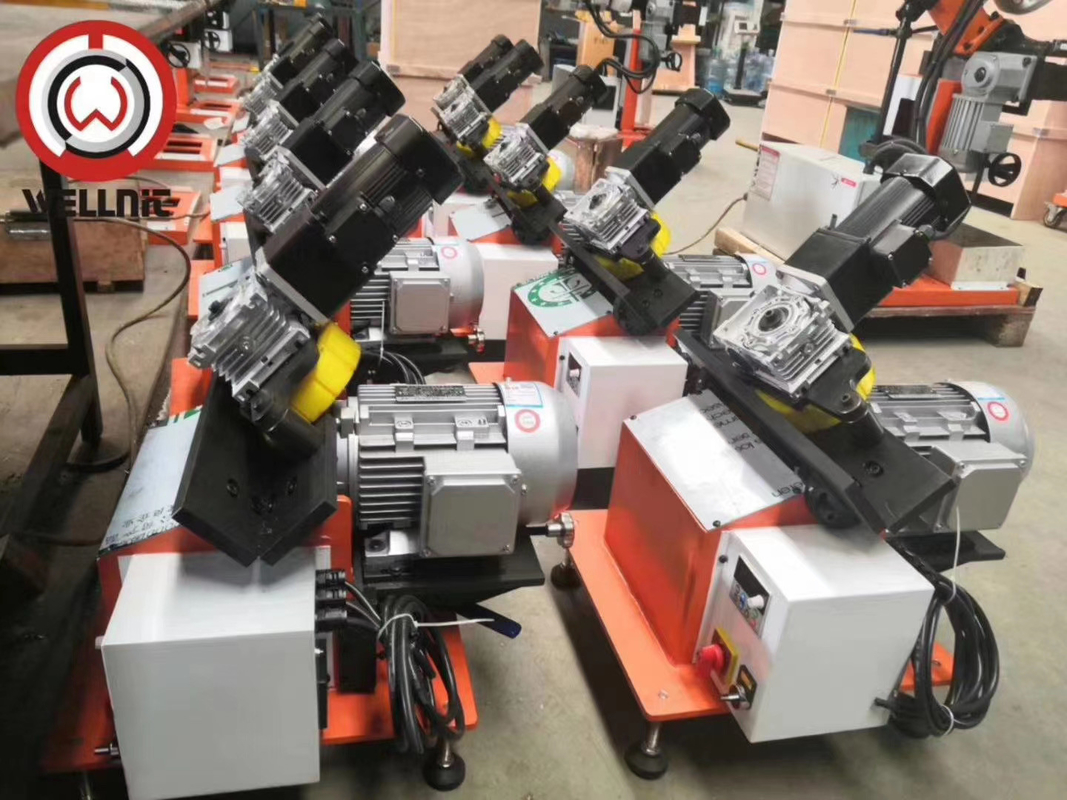

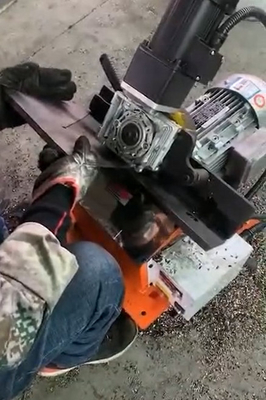

Detailed Images
Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed 0
Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed 1
Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed 2
Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed 3
Small Acrylic Sheet Plate Beveling Machine 50HZ Automatic Feed 4
