High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

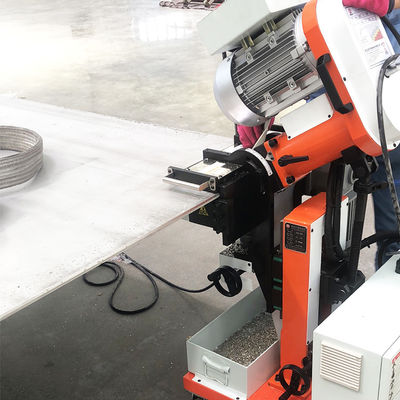

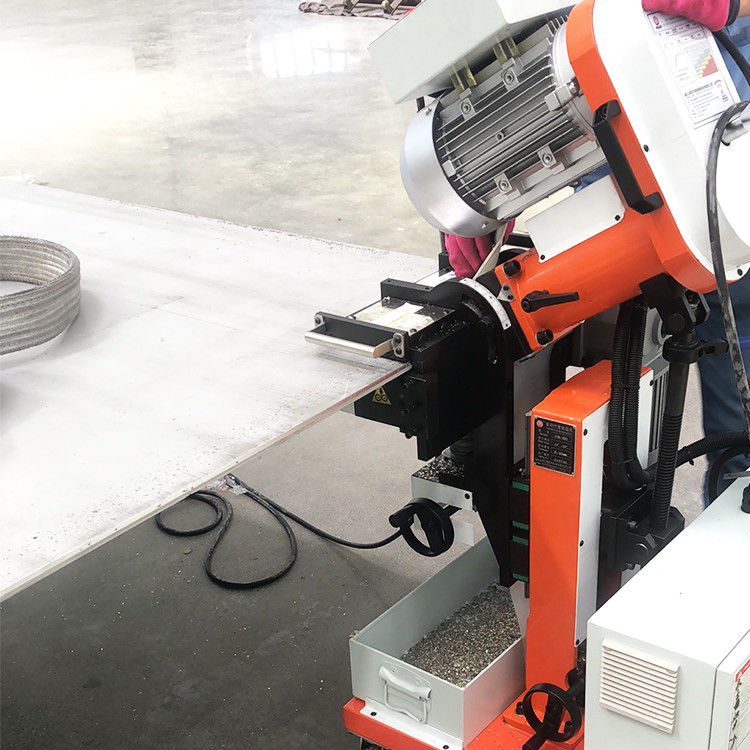

High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate

High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate
High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate
video play

Large Image :  High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO-9001
Model Number: PB-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 35 sets a month
Detailed Product Description
Power: AC 380v 50Hz Total: 6400w
Spindle Speed: 750-1440r/min(adjustable) Bevel Width: 1-70mm
High Light:

High Speed Pipe Cutting Beveling Machine

,

70mm Pipe Cutting Beveling Machine

,

Automatic Plate Pipe Cutter Beveling Machine

High Speed Automatic Plate Beveling Machine PB-80



Product main performance



The PB-80 edge milling machine convenient movement and simple operation. The finish of the groove is as high as Ra3.2- 6.3.It is suitable for small factories. The milling machine is equipped with commonly used CNC blades to make the customers use the cost more cheaply.





Main Features


1.Cold Processed, No spark, Will not affect the material of plate.
2.Automatic feed, High efficiency.
3.Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
4.Numerical control display screen, Simple operation, Bevel speed can be adjustable, high precision.
5.Equipped with CNC blades, low consumables.
6.Bevel type:V, Y, K, X etc.
7.Can process carbon steel, stainless steel, alloy steel, titanium, composite plate etc.



Machine Specification

Model PB-80
Power AC 380V 50Hz
Total 6400W
Spindle Speed 750-1440r/min (Adjustable)
Feed Speed 0-1500r/min (Adjustable)
Bevel Width 1-70mm
Single Bevel Width 1-20mm
Bevel Angle 0°-60°(Adjustable)
Clamp Thickness 6-80mm
Plate Width >100mm
Plate Length >300mm
Worktable Height 820-860mm
Net Weight 270kg





































Machine Packing List

Name Unit Qty
Machine Set 1
Industrial Socket Pcs 1
Oil Gun Pcs 1
Sprinkling Can Pcs 1
Bevel Blade Pcs 6
Blade screw Pcs 6
Screwdriver Pcs 1
T5 Wrench Pcs 1
M17 Wrench Pcs 1
Allen wrench Set 1
Ratchet wrench Pcs 1

































Bevel Type:

High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate 0

High Speed Pipe Cutting And Beveling Machine 70mm Automatic Plate 1
