Product Details:
Payment & Shipping Terms:
|
| Range: | 18-28mm | Thickness: | 15mm |
|---|---|---|---|
| Driven: | Electric,pneumatic | Delivery: | In Stock |
| Package: | Plastic Handle Case | Color: | As Request |
| High Light: | Lightweight Electric Pipe Chamfering Beveling Machine,28mm Electric Pipe Chamfering Beveling Machine,15mm Electric Pipe Beveling Machine |
||

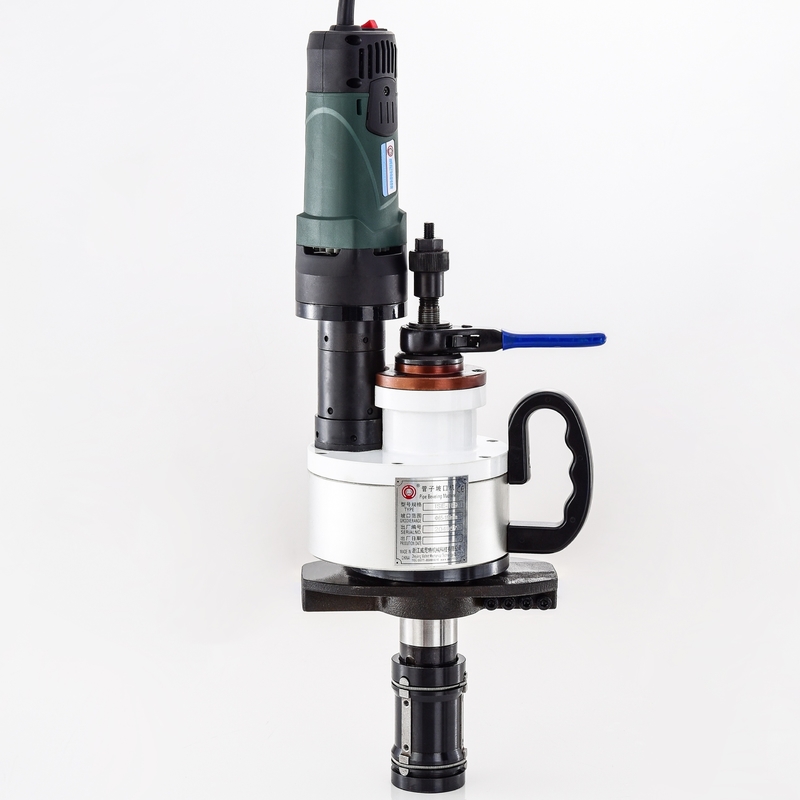

Light Weight interl Mounted Tube Chamfering Machine Tool
Production Description
This series is Manufacture Equipment Pneumatic Pipe Beveling Machine with the following advantages:
| Model | Working Range(ID-OD) | Wall Thickness(mm) | Rotation Speed(r/min) | ||
| ISP-30 | ISM-30 | Φ18-30 | 1/2"-3/4" | ≤15 | 50 |
| ISP-80 | ISM-80 | Φ28-89 | 1"-3" | ≤15 | 55 |
| ISP-120 | ISM-120 | Φ40-120 | 11/4"-4" | ≤15 | 30 |
| ISP-159 | ISM-159 | Φ65-159 | 21/2"-5' | ≤20 | 35 |
| ISP-252-1 | ISM-252-1 | Φ80-273 | 3"-10" | ≤20 | 16 |
| ISP-252-2 | ISM-252-2 | Φ80-273 | ≤75 | 16 | |
| ISP-352-1 | ISM-352-1 | Φ150-356 | 6"-14" | ≤20 | 14 |
| ISP-352-2 | ISM-352-2 | Φ150-356 | ≤75 | 14 | |
| ISP-426-1 | ISE-426-1 | Φ273-426 | 10"-16" | ≤20 | 12 |
| ISP-426-2 | ISM-426-2 | Φ273-426 | ≤75 | 12 | |
| ISP-630-1 | ISM-630-1 | Φ300-630 | 12"-24" | ≤20 | 10 |
| ISP-630-2 | ISM-630-2 | Φ300-630 | ≤75 | 10 | |
| ISP-850-1 | ISM-850-1 | Φ490-850 | 24"-34" | ≤20 | 9 |
| ISP-850-2 | ISM-850-2 | Φ490-850 | ≤75 | 9 | |
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
