Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 220-240V 50-60Hz | Driven: | Electric |
|---|---|---|---|
| Thickness: | Less Than 20 (Standard) | Speed Rotation: | 16r/min |
| Working WAY: | No Spark,Cold Working | Fix Way: | Inside Mounted |
| Motor Power: | 1600W | Working Range: | 80-273mm(Inside Diameter) |
| High Light: | tube facing machine,portable pipe beveler |
||

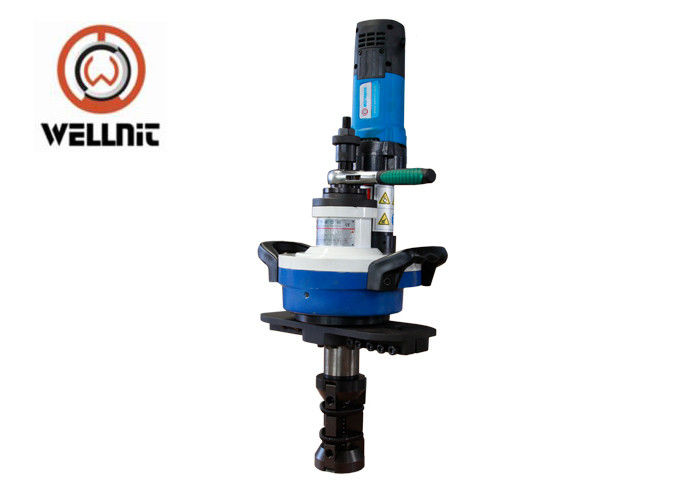

Cold Working Pipe Prepping Machine Electric Driven Portable Beveling Tool
This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required. We Provided three different driving types for this series products: Electric, Pneumatic, Hydraulic. We also had two different types for electric motor driving pipe beveling machine, and it adopted more excellent Metabo Motor in it.
This series machine adopt air motor, main applied at the site of explosive and fireproof, power supply required: 0.6-0.8 MPa compressed air. With the advantage of : Fast Installation, Self-centered and working safety.
advantages:
| ISE-252-1 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦20 |
| Working Range | 80-270mm |
| Rotation Speed | 16r/min |
| Net Weight | 26kg |
Non-standard machines are available according to customers’requirement.
