Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 220-240V 50-60Hz | Driven: | Electric |
|---|---|---|---|
| Thickness: | Less Than 15 (Standard) | Speed Rotation: | 35r/min |
| Working WAY: | No Spark,Cold Working | Fix Way: | Inside Mounted |
| Motor Power: | 1600W | Working Range: | 65-159mm(ID-OD) |
| High Light: | electric pipe beveler,tube facing machine |
||

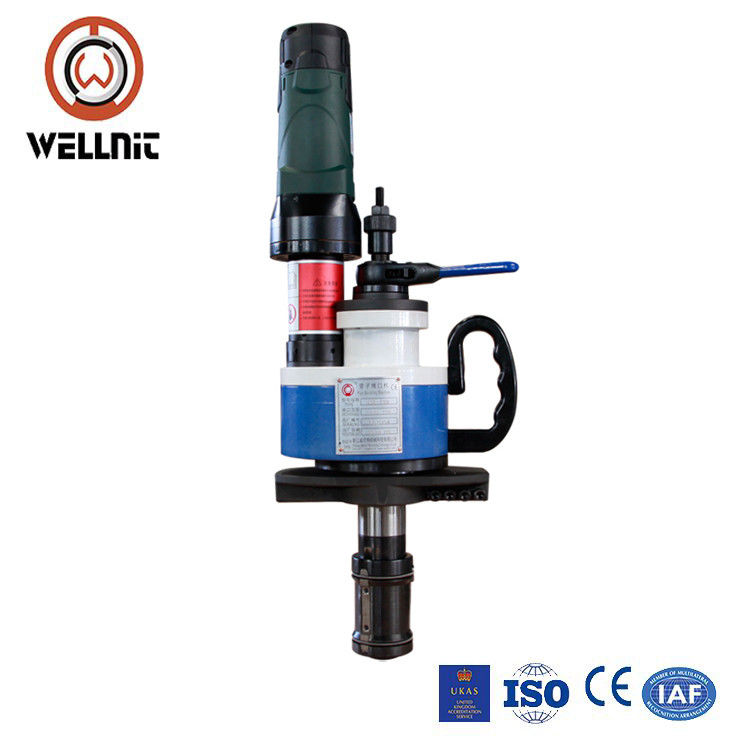

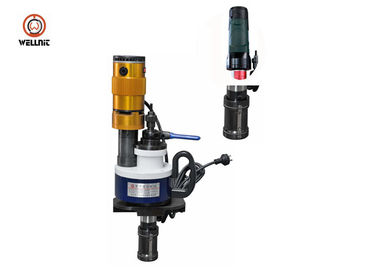

Metal ISD Series Electric Pipe Beveling Machine Light Weight 220V 35 R/min
This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.
| ISE-159 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50/60Hz |
| Power | 1600W |
| Wall Thickness | ≦15 |
| Working Range | 65-159mm |
| Rotation Speed | 35r/min |
| Net Weight | 32kg |
Non-standard machines are available according to customers’requirement.
