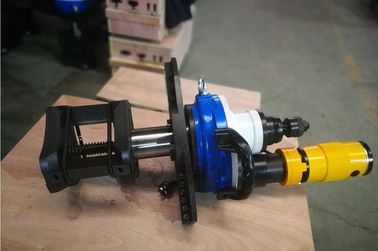

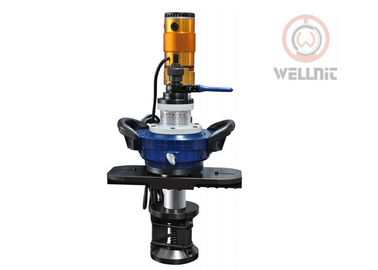

High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min

High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min
High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min

Large Image :  High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISE426-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Driven: Electric
Thickness: Less Than 20 (Standard) Speed Rotation: 12r/min
Working WAY: No Spark,Cold Working Fix Way: Inside Mounted
Motor Power: 1600W Working Range: 250-426mm(Inside Diameter)
High Light:

electric pipe beveler

,

portable pipe beveler



High Speed Portable Electric Pipe Beveling Machine Inside Mounted 1600W 12 R/min



Machine description:

* Inner mounted quickly and easily, self-located in the center of the pipe,
* Beveling and grooving with high speed, Used for the welding preparation.
* Can Process inside beveling and deep hole
* Can Process facing, flange, convex surface and Seal groove.
* Cold cutting process will not influence the quality of the materical of the pipe.
* Used for carbon steels, stainless steels and alloyed steel pipes end beveling.
* Can process the U, V, double V and J shape of pipe beveling according to the customers requirement.
* Working range wider: Pipe diameter from 70mm to 850mm.
* Application: petroleum, chemical, natural gas, food, boiler, medicine, power supply construction and nuclear power.
* Driven motor: Pneumatic, Electric.
* Sorted by the construction: Y-model



Advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required

Technical Parameter





ISE-426-1 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦20
Working Range 250-426mm
Rotation Speed 12r/min
Net Weight 120kg




Non-standard machines are available according to customers’requirement.
