Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 220-240V 50-60Hz | Driven: | Electric |
|---|---|---|---|
| Tube Thickness: | Less Than 15 (Standard) | Rotation: | 50r/min |
| Working Type: | No Spark,Cold Working | Install: | Inside Mounted |
| Motor Power: | 1600W | Working Range: | 18-30mm(Inside Diameter) |
| High Light: | electric pipe beveler,tube facing machine |
||

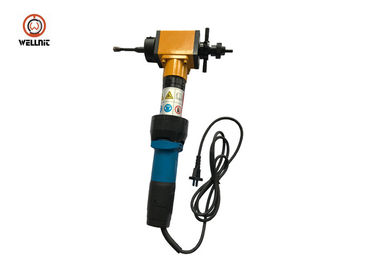

Self Centering Portable Electric Pipe Beveling Machine Minimal Radial Space
Main performance of the product
This series pipe beveling machine is mainly used for pressure pipe beveling before welding
special equipment.electric fire island for some site work space is limited pipeline
maintenance.repair characteristics of large quantities of design and manufacture of special
type equipment.
1. For water wall,superheater,reheater,economizer tubes and other professional equipment on-
site conditions and the dimensions of the machine designed to maximize the machine's overall
weight reductions,
2. Simplified methods of operation,improve work efficiency.
3. Choose low alloy steel tips,can adapt to a variety of lables for steel pipe processing.

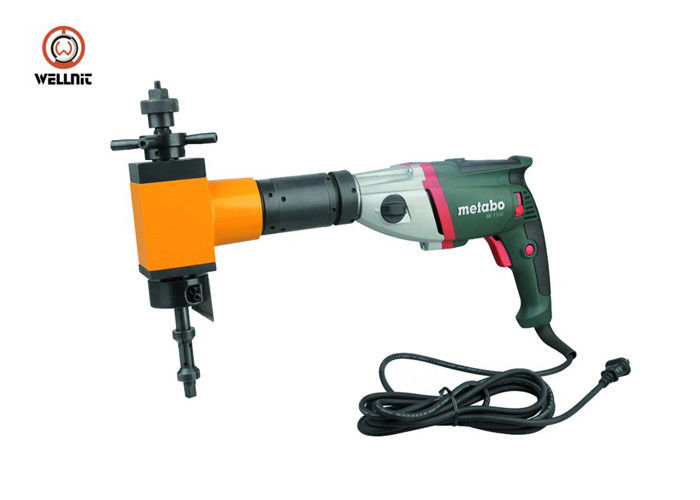

4. Imported from Germany metabo motor,powerful engine and durable endurance.
5. Chips machine can automatically feed,automatic retraction reset,simple operation,safe and
reliable.
| ISE-30 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦15 |
| Working Range | 18-30mm |
| Rotation Speed | 50r/min |
| Net Weight | 16kg |
Non-standard machines are available according to customers’requirement.
Model |
Working Range (ID/OD) |
Wall Thickness |
Rotation Speed |
|
ISM-30 |
Φ16-28 |
Φ19-38 | ≤15 |
50r/min |
ISM-80 |
Φ28-76 |
Φ32-89 | ≤15 |
55r/min |
ISM-120 |
Φ40-110 |
Φ48-120 |
≤15 |
30r/min |
ISM-159 |
Φ65-159 |
Φ72-168 | ≤20 |
35r/min |
ISM-252-1 |
Φ80-240 |
Φ90-273 | ≤20 |
16r/min |
ISM-252-2 |
≤75 |
16r/min |
||
ISM-352-1 |
Φ150-330 |
Φ160-356 |
≤20 |
14r/min |
ISM-352-2 |
≤75 |
14r/min |
||
ISM-426-1 |
Φ250-410 |
Φ260-430 |
≤20 |
12r/min |
ISM-426-2 |
≤75 |
12r/min |
||
ISM-630-1 |
Φ300-600 |
Φ320-630 |
≤20 |
10r/min |
ISM-630-2 |
≤75 |
10r/min |
||
ISM-850-1 |
Φ590-830 |
Φ610-850 |
≤20 |
9r/min |
ISM-850-2 |
≤75 |
9r/min |
||
Model |
ISM-30 |
|
Working Range (mm) |
ID |
16-28 |
OD |
19-38 | |
The Input Electrical Power(W) |
1200 |
|
voltage(V) |
220 |
|
frequency (HZ) |
50/60 |
|
Rotating cutter head speed (r/min) |
11 |
|
Max Tool Travel (mm) |
35 | |
Net Weight |
10KGS | |
