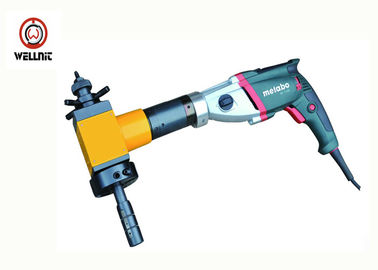

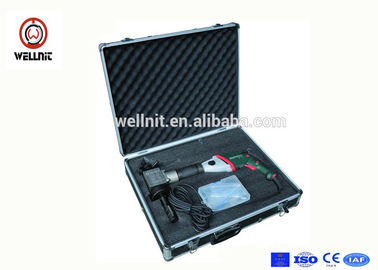

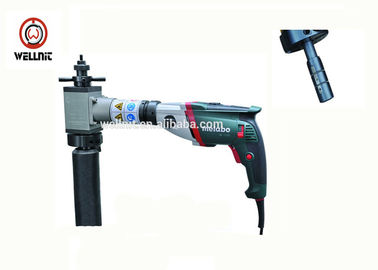

55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted

55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted
55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted 55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted 55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted

Large Image :  55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISM-80
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Drive Type: Electric
Pipe Thick: Less Than 15 (Standard) Rotation Of Machine: 55r/min
Working Method: No Spark,Cold Working Fix Type: Inside Mounted
Motor Supply: 1600W Working Size: 28-89mm(Inside Diameter)
High Light:

electric pipe beveler

,

portable pipe beveler



55 R/min Pipe Tube Bevelling Machine Electric Driven Metabo Motor Inside Mounted





Production Description


This series is Welding Preparation Electric Pipe Beveling Machine with the following advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per youruired.
Production Features
  • This series is ID-mounted pipe beveling machine with light weight, compact design.
  • Easy and quickly set-up self centered and squared to the bore.
  • The tool not only can process carbon steel, stainless steel and alloy pipe with U, V welding seam but also process convex flange welded.
  • Fast precision, on-site beveling, the bevel angle by your required.
  • This series available for electric and pneumatic driven.

Application Range


They are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.



Production Specification



Technical Parameter





ISM-80 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦15
Working Range 28-89mm
Rotation Speed 55r/min
Net Weight 17kg




Non-standard machines are available according to customers’requirement.





Spec. Working Range
(mm)
Wall Thickness
(mm)
Rotation Speed
(rpm)
30 18~30 ≤15 50
80 28~89 ≤15 55
120 40~120 ≤15 30
159 65~159 ≤20 35
273-I 80~273 ≤20 16
355-I 150~355 ≤20 14
426-I 273~426 ≤20 12
630-I 300~630 ≤20 10
850-I 600~850 ≤20 9
