Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Supply: | 220-240V 50-60Hz | Type: | Electric |
|---|---|---|---|
| Pipe Thickness: | Less Than 15 (Standard) | Speed: | 30r/min |
| Working: | No Spark,Cold Working | Fix Way: | Inside Mounted |
| Motor Power: | 1600W | Working Range: | 40-120mm(Inside Diameter) |
| High Light: | electric pipe beveler,tube facing machine |
||

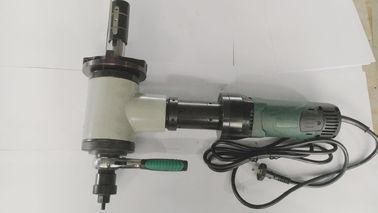

Low Noise Portable Pipe Beveling Tool Electric Driven Automatically Feed
The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.
Features:
On-site cold Beveling improves safety
Easy set-up & Operation
Self-Centering
Can be positioned in any direction
Feed ratchet spanner makes tool feed / back easily
Light weight and compact design

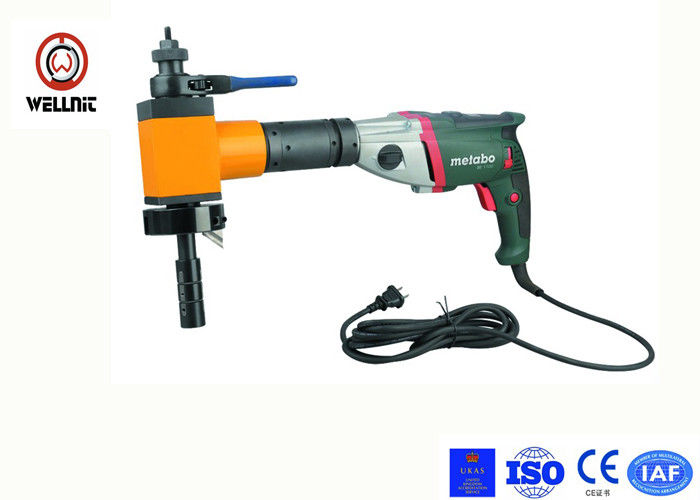

| ISM-120 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦15 |
| Working Range | 28-89mm |
| Rotation Speed | 30r/min |
| Net Weight | 18kg |
Non-standard machines are available according to customers’requirement.
1. For water wall,superheater,reheater,economizer tubes and other professional equipment on-
site conditions and the dimensions of the machine designed to maximize the machine's overall
weight reductions,
2. Simplified methods of operation,improve work efficiency.
3. Choose low alloy steel tips,can adapt to a variety of lables for steel pipe processing.
4. Imported from Germany metabo motor,powerful engine and durable endurance.
5. Chips machine can automatically feed,automatic retraction reset,simple operation,safe and
reliable.
