High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine

High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine
High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine

Large Image :  High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISM-159
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Normal Power: 220-240V 50-60Hz Motor: Electric
Pipe Thick: Less Than 15 (Standard) Rotate Speed: 35r/min
Type: No Spark,Cold Working Install Way: Inside Mounted
Motor Working Power: 1600W Working Range: 65-159mm(Inside Diameter)
High Light:

electric pipe beveler

,

portable pipe beveler

High Precision Electric Pipe Beveler Boiler Stable Operation , Tube Beveling Machine







Main performance of the product

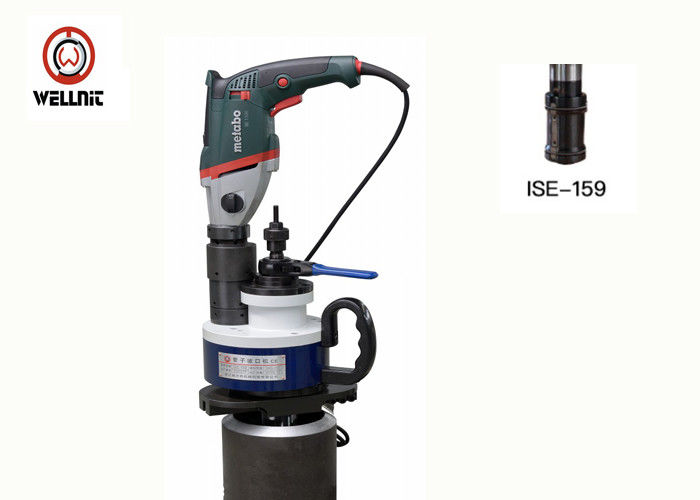

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.

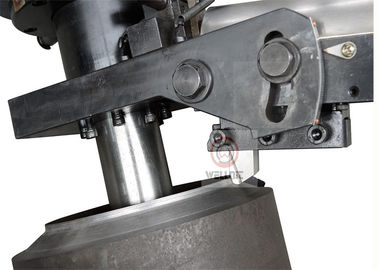

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.



 advantages:


  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.
  •

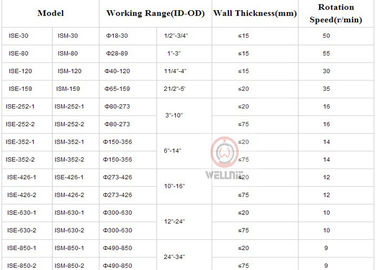

Technical Parameter





ISM-159 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦20
Working Range 65-159mm
Rotation Speed 35r/min
Net Weight 33kg




Non-standard machines are available according to customers’requirement.






Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depend to quantity.

Q: What is your terms of payment ?

A: 1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.
