Home ProductsElectric Pipe Beveling Machine

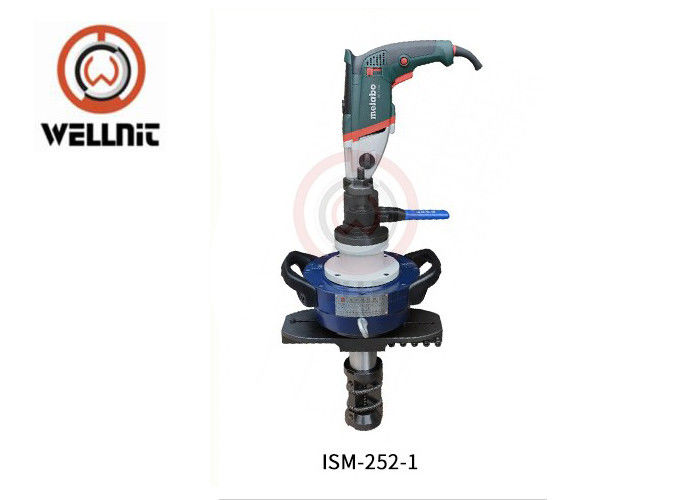

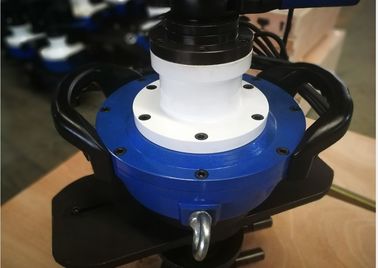

Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W

Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W
Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W

Large Image :  Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISM-252-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Electric Supply: 220-240V 50-60Hz Operation Type: Electric
Thickness Of Pipe: Less Than 20 (Standard) Rotation: 16r/min
Working Type: No Spark,Cold Working Fix As Usual: Inside Mounted
Electric Motor Power: 1600W Working Size: 80-273mm(Inside Diameter)
High Light:

electric pipe beveler

,

tube facing machine

Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W





This machine is widely used to beveling the pipe in the fileds of overhaul,reheater overheater,e.g.water cooled wall,boiler etc.
It meets the requirement of the processing the pipe on site,especially in the project with large
scale to repair.


Production Features
  • This series is ID-mounted pipe beveling machine with light weight, compact design.
  • Easy and quickly set-up self centered and squared to the bore.
  • The tool not only can process carbon steel, stainless steel and alloy pipe with U, V welding seam but also process convex flange welded.
  • Fast precision, on-site beveling, the bevel angle by your required.
  • This series available for electric and pneumatic driven.
Application Range
They are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.


Driving Type
Electric-ISE-I


Production Specification
Spec. Working Range
(mm)
Wall Thickness
(mm)
Rotation Speed
(rpm)
30 18~30 ≤15 50
80 28~89 ≤15 55
120 40~120 ≤15 30
159 65~159 ≤20 35
273-I 80~273 ≤20 16
355-I 150~355 ≤20 14
426-I 273~426 ≤20 12
630-I 300~630 ≤20 10
850-I 600~850 ≤20 9




Non-standard machines are available according to customers’requirement.



Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W 0Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W 1Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W 2Light Body Electric Pipe Beveling Machine Id Mounted Compact Design 1600W 3
