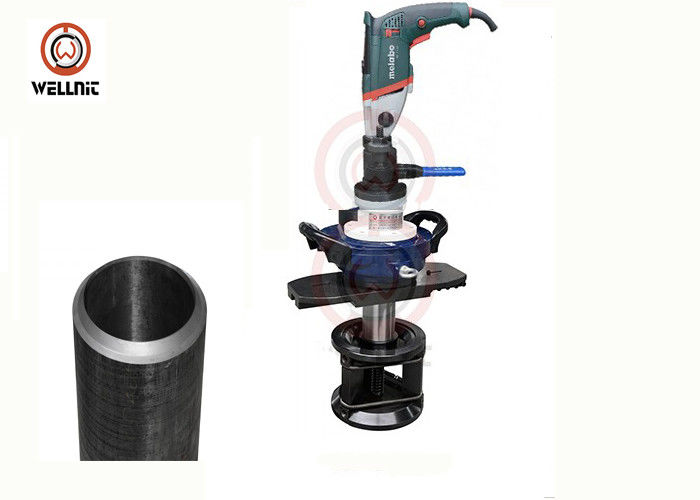

High Speed Electric Pipe Beveling Machine For Carbon Steels, Stainless Steels

High Speed Electric Pipe Beveling Machine For Carbon Steels, Stainless Steels
High Speed Electric Pipe Beveling Machine For Carbon Steels, Stainless Steels

Large Image :  High Speed Electric Pipe Beveling Machine For Carbon Steels, Stainless Steels

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISE-630-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power: 220-240V 50-60Hz Driven: Penumatic
Thick: Less Than 20 (Standard) Speed Rotation: 14r/min
Working WAY: No Spark,Cold Working Fix Way: Inside Mounted
Motor Power: 1600W Working Range: 300-630mm(Inside Diameter)
High Light:

tube facing machine

,

portable pipe beveler



Cold Working Portable Body Inside Mounted Pipe Beveling Machine Electric Driven





* Inner mounted quickly and easily, self-located in the center of the pipe,
* Beveling and grooving with high speed, Used for the welding preparation.
* Can Process inside beveling and deep hole
* Can Process facing, flange, convex surface and Seal groove.
* Cold cutting process will not influence the quality of the materical of the pipe.
* Used for carbon steels, stainless steels and alloyed steel pipes end beveling.
* Can process the U, V, double V and J shape of pipe beveling according to the customers requirement.
* Working range wider: Pipe diameter from 70mm to 850mm.
* Application: petroleum, chemical, natural gas, food, boiler, medicine, power supply construction and nuclear power.
* Driven motor: Pneumatic, Electric.
* Sorted by the construction: Y-model



Why choose our machine:



      1.  Lighter weight,minimal radial space,Easy to operate.

      2.   A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.

​      3. Driveing Type:Electric-ISE,Pneumatic-ISP.

      4. Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.

      5. Angle:Beveling angle as per your required.





ISM-630-1 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦20
Working Range 300-630mm
Rotation Speed 10r/min
Net Weight 132kg




Non-standard machines are available according to customers’requirement.
